Stock Code TT9612
Thunder Tiger
RRP: £189.99£169.99Delivery time: 1-3 working days |

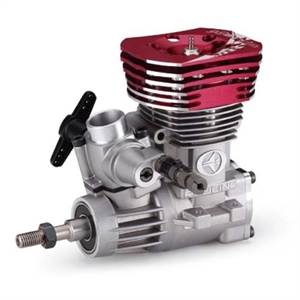

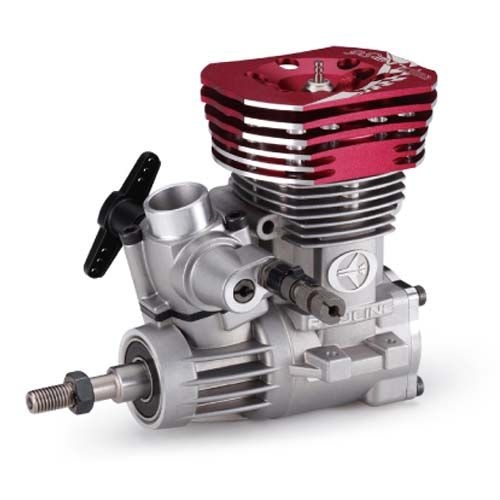

This is the Thunder Tiger Redline 56H Helicopter Engine. The Redline Series .56H is Thunder Tiger’s largest displacement and most advanced .50-class heli engine. With features that include an XC2 composite coating that helps to extend engine life, a insulated carburetor, reinforced beam mount and over sized heat sink head, this compact engine provides competitive heli pilots with the extreme power and performance required for hardcore 3D flight.
1.Designed for stable hovering and aerobatic 3D flights
2.XC2 (extreme composite coating) cylinder liner with special criss-cross pattern etched
3.Precisely-balanced crankshaft with Ni plating to further reduce corrosion
4.Knife-edged design & high-strength connecting rod with bushings pre-installed
5.Lightened hypereutectic machined Al-Si ringed piston
6.Machined over-sized heat sink head
7.Reinforced resin rear cage ball bearing support
8.State-of-the art CNC machined components
9.Non-seizing flange mount carburetor with thermo insulator
10.Push-pull throttle lever
11.2 Needle valves adjusted with both Hex and FT driver at same side
12.High performance Redline R3 glow plug included
| Displacement(c.c. / cu.in.) | 0.553 cu in/9.05 cc |
| Bore(mm / in.) | 0.906in/23mm |
| Stroke(mm / in.) | 0.858in/21.8mm |
| Practical R.P.M.(R.P.M.) | 2.000~21.000 RPM |
| Output(BHP/RPM) | 2.23 BHP@17.500rpm |
| Weight(g/oz) | 13.8oz/390g |
