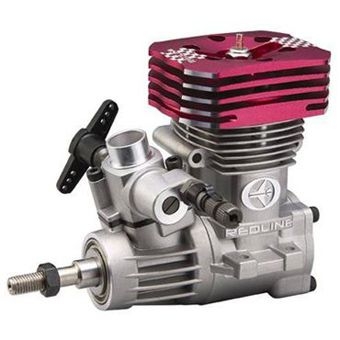

Thunder Tiger Redline 53H

Thunder Tiger Redline 53H

Stock Code TT9606

Thunder Tiger

RRP: £174.99

£154.99

Delivery time: 1-3 working days





Overview

REDLINE is a new helicopter engine line from Thunder Tiger. Higher performance and extreme power in a compact-size engine with yet larger displacement and awesome power. The RL-53H is a fantastic nitro powerplant for your 50 class R/C helicopter.

The RL-53H engine features XC2 extreme composite coating with nano-technology from Japan for longer engine life, a special criss-cross pattern etched on the sleeve wall for much lower friction and an oversized heat sink head. These exclusive RL-53H's features deliver much more reliable power and higher torque through the full range of RPM.

The brand-new carb design is mounted on the crankcase with a very effective heat insulator to keep the carb working at stable temperature under all conditions.

Features
Designed for stable hovering and aerobatic 3D flights
XC2 (extreme composite coating) cylinder liner with special criss-cross pattern etched
Precisely-balanced crankshaft with Ni plating to further reduce corrosion
Knife-edged design & high-strength connecting rod with bushings pre-installed
Lightened hypereutectic machined Al-Si ringed piston
Machined over-sized heat sink head
Reinforced resin rear cage ball bearing support
State-of-the art CNC machined components
Non-seizing flange mount carburetor with thermo insulator
Push-pull throttle lever
2 Needle valves adjusted with both Hex and FT driver at same side
High performance Redline R3 glow plug included
Specification

Displacement(c.c. / cu.in.) 8.67 c.c / 0.529 cu.in
Bore(mm / in.)22.5 mm / 0.886 in
Stroke(mm / in.)21.8 mm / 0.858 in
Practical R.P.M.(R.P.M.)2.000~21.000 RPM
Output(BHP/RPM)2.1 BHP / 17,000 RPM
Weight(g/oz)380 g / 13.40 oz
