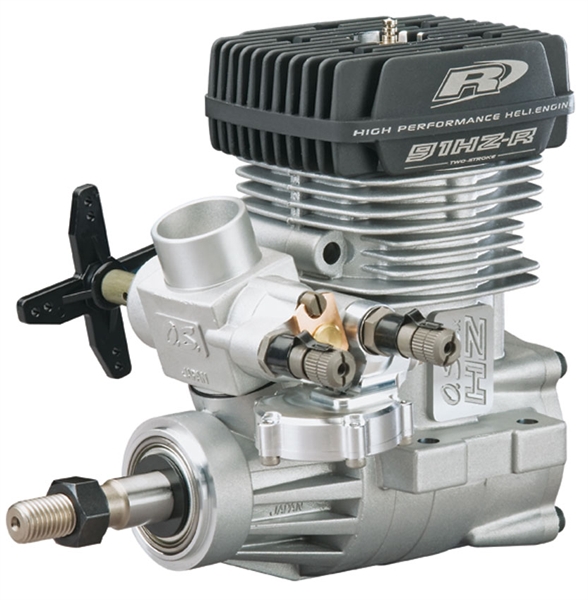

O.S. MAX 91HZ-R Ring

O.S. MAX 91HZ-R Ring

Stock Code L-OS18640

OS Engines

RRP: £349.99

£324.99

Delivery time: 1-3 working days





Overview

Based on the multi-time FAI world champion 91HZ heli engines, O.S. is taking their new 91HZ-R to even higher levels of performance; thanks to the new "on demand" regulator system. Designed specifically for this engine, this system guarantees the steady fuel supply, needed for the most-demanding of 3D flights with constant, vigorous attitude and throttle changes. The 91HZ-R also performs well as an F3C powerhouse providing a steady, smooth run and exacting mixture controls.

Unlike a pump or muffler pressure the fuel arrives at the regulator under a constant pressure. This ensures the engine will run exactly the same throughout the entire tank- from full to empty. Additionally, this regulator has been designed so that the mounting position of the system is perfectly in line with the carburetor resulting in consistent engine operation in all attitudes of the model.

Rest assured, 91HZ-R will never be lacking in fuel or lagging in performance!

Features
  • The narrow profile of the heat sink head helps the 91HZ fit completely inside cooling shrouds without cutting or losing cooling power!
  • Two heat sinks – one on the head, another on the crankcase – allow airflow to carry away heat and maintain performance.
  • Better overall balance reduces engine noise and promotes smoother, stronger performance.
  • The new 61e-R carb takes consistency to the next level. Dependability features start with an insulating ring which prevents crankcase heat from affecting carb settings. A generous use of O-ring seals – two on the main needle, one on the rotor – prevents air leaks and power fluctuations.
  • In-flight control of the needle valve ensures smooth, consistent runs.
  • Specification
    Displacement: 14.95cc
    Bore:27.7mm
    Stroke:24.8mm
    Practical RPM:2000 - 16000
    Weight:625g
    Power Output3.4hp @ 15000RPM
    Includes: 61ER Carburetor, #8 Glow Plug, Check Valve, 0.2mm Head Shim (Engine has a 0.1mm head shim installed), (2) 2.6X5 Needle Adjusting Screws
