Overview

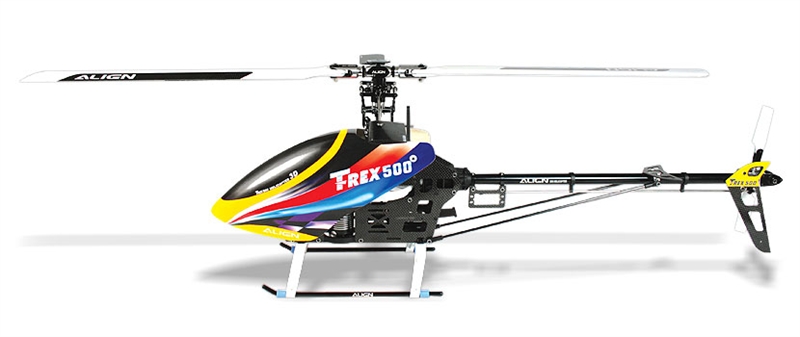

T-Rex 500 ESP Superior Combo, this is the ultimate version of this model containing all upgrades as standard, such as Tube Driven Tail, All Aluminium extras, Carbon Paddles/Tail Blades/Main Blades, New Designed Canopy. It also includes the Align 500L Motor, Align 60A ESC, 3 x Align DS510 Digital Servos.
Accessories:
T-REX 500 ESP Kit SetX1 set
425 carbon fiber bladesX1
RCE-BL60G 60A Brushless ESCX1
Built-in 5-6V step-less adjustable BEC)
500L Brushless motor(1600KV)X1
Motor ponion gear 12TX1 and 13TX1
DS510 ServoX3
Radio transmitter and electronic equipment required for assembly:
1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.Head lock gyroX1
4.Specialized servoX1
5.Pitch gaugeX1
6.22.2V 6S Li-Po 2100~2500mAh batteryX1
Features
1.Electric power system.
2.Simple and light weight design provides awesome flight performance and extreme 3D capability.
3.Rigid carbon fiber frame design.
4.Beautiful factory painted fiberglass canopy.
5.Rotor head/tail with thrust bearings.
6.Direct-to-swash CCPM linkage.
7.Center of gravity of Battery tray designed close to the rotor head.
8.High efficiency torque tube drive system.
9.Fully driven tail auto rotation system.
10.Tail servo boom mount.
Specification
Length:840mm
Height:310mm
Main Blade Length:425mm
Main Rotor Diameter:970mm
Tail Rotor Diameter:200mm
Motor Ponion Gear:12T/13T
Main Drive Gear:162T
Autorotation Tail Drive Gear:145T
Tail Drive Gear:31T
Drive Gear Ratio:1:13.5:4.68/1:12.46:4.68
Weight(w/o power system):1370g
Flying Weight:Approx 1700g
Color carton:48.3x18.7x9.8cm
Outer carton:58x50x42cm ,12sets/ctn
