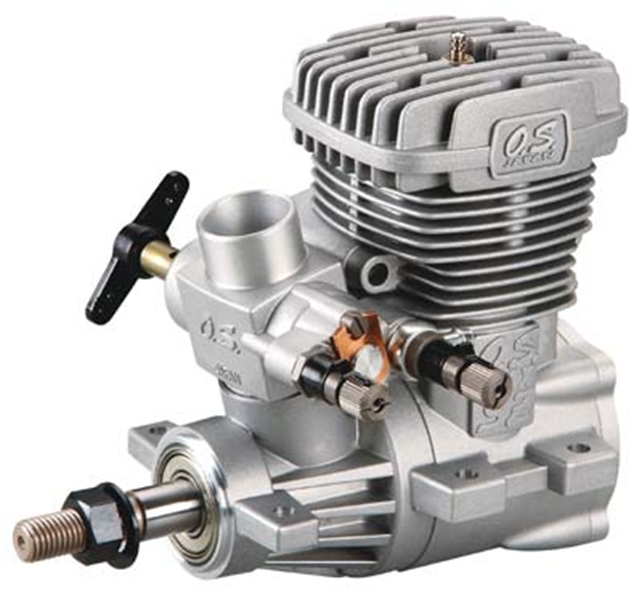

O.S. MAX 70SZ-H Ring

Stock Code L-OS17000

OS Engines

RRP: £259.99

£233.99

Delivery time: 1-3 working days





Overview

You want MORE POWER to give your .60-size helicopter more authority in challenging maneuvers. You don't want to take on time-consuming mounting modifications and gearing changes.

O.S. has the answer: the 70SZ-H. It installs in the same space as a .61, and operates in virtually the same rpm band...so you can upgrade in an instant, and right away enjoy extra muscle for 3D flying and FAI F3C competition.

Developed directly from the feedback received from top FAI and 3D pilots throughout the world, the MAX 70SZ-H Ring produces copious quantities of power across the rev range without sacrificing its ability to perform precision hovering. There's a stronger crankcase (with 6-point mounts), 3-needle carburettor and a revised liner/port design to give you the performance you need to beat the world! Particularly suited to the demands of 3D flight

Features
  • Specifically developed to satisfy the performance demands of FAI F3C competition pilots.
  • Throttle assembly reference marks make it easy to note and restore finely tuned settings after maintenance.
  • Additional mounting lug on front of crankcase increases stability during extreme maneuvers.
  • Front and rear ball bearing suppported crankshaft reduces friction and wear.
  • Three-needle carburetor permits exceptionally precise adjustments.
  • Large helicopter cylinder head offers generous cooling fin area—increased webbing on the crankcase front improves heat dissipation even further
  • Specification
    Displacement:            0.702 cu in (11.5 cc)
    Bore:                         1.016 in (25.8 mm)
    Stroke:                      0.866 in (22.0 mm)
    Practical rpm:            2,000-18,000
    Output:                     2.5 hp @ 16,000 rpm
    Weight w/o Muffler:   19.5 oz (553.5 g)
    Requires:                   Muffler & fuel
