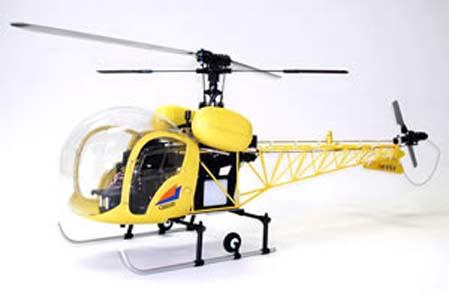

Century Bell 47G II (30 Size)

Made famous in many movies, the venerable Bell 47G is considered by many to be the Piper Cub of the helicopter world. Currently available from Century helicopters as a modular 50 size ARF R/C scale model. Following on the high standards set by their 30 size Bell 222, Airwolf, Long Ranger, Agusta 109 and Schweizer 300, it features top quality pre-painted fiberglass scale parts and the "oil derrick" tail boom that are already assembled and painted in a high visibility yellow. Much of the Falcon 50 derived mechanics come assembled in separate modules, such as the rotor head assembly, the mainframe assembly and the tail boom/tail drive assembly. Truly a model that is again setting new standards in the scale model R/C helicopter community

Features:

Strong, Rigid, Aluminum Frame.
Upper and Lower Modular Servo Frame Tray Designed for Easy Maintenance.
Top Hex Start System that Disengages after Engine Start up Insures Vibration Free Running.
Metal Control Balls on all Servo Wheels, Bellcranks, Control Arms and Swashplate.
Dual Ball Bearing Supported Collective Control Arm.
No-Slop Metal Composite Swashplate With Metal Ball Joints.
Canopy and Simulated Fuel Tanks Constructed of Strong Fiberglass.
Fuel Tanks Attach Securely to the Frame.
Doors Open and Close with Operating Door Handles.

Specifications:

Length:	50"  (1270mm)
Height:	16.25"  (412mm)
Width:	8.5" (216mm)
Weight:	7.2Ibs
Main Rotor Diameter:	53.5" (1358mm)
Tail Rotor Diameter:	9.3" (240mm)
Engine Size:	.50

Click Here For More Images Of The Bell 47G II

Required Items: 6 channel Helicopter Radio System (or greater), Gyro, Engine, Muffler and Starting Accessories.
