Spektrum AR6400 DSM2 Ultra Micro 6 Channel Receiver

Stock Code SPMAR6400

SPEKTRUM

RRP: £49.99

£44.99

Delivery time: 1-3 working days


< Back to list




Overview

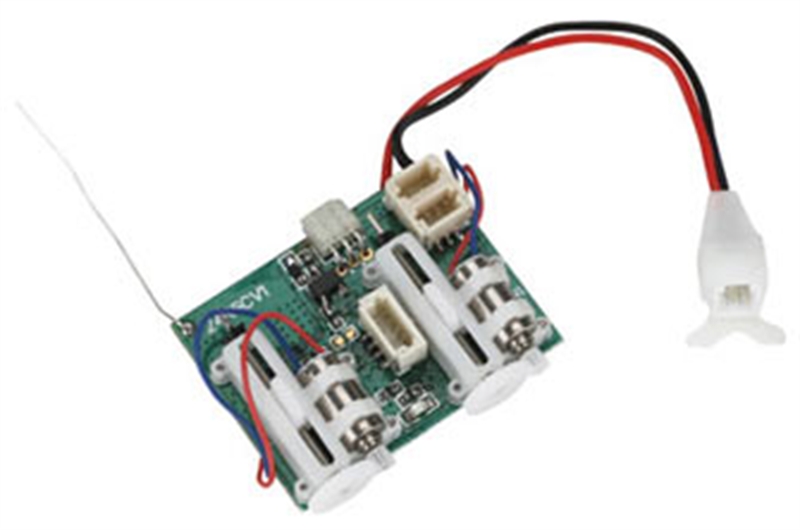

Spektrum’s AR6400 Ultra-Micro Receiver, Designed to be used in conjunction with (SPM6825) servos. Each servo comes with a linear servo reverser.
Features
  • Two 1.5 Gram on-board Linear servos
  • DSM2 Technology—High speed response, glitch-free operation
  • Integrated ESC—Eliminates the need for an external ESC saving more weight and saving the end user an additional purchase to get their model in the air
  • Small compact footprint—At  27.75 x 23.45 x 8.10mm it is the most compact integrated receiver in the SPM brand
  • Total Weight 3.9 grams—Lightweight
  • Two additional servo ports—Enables the customer to add-on two optional 1.5 Gram linear servos
  • 1mm pitch JST connections—Less weight and small footprint
  • Monopole antenna—Eases installation; no complex antenna routing required
  • Single Li-Po operation—3.1 to 4.2V allows user variety in battery selection
  • X-Port Function for IR sonic combat module, this will be available under the ParkZone brand
  • Brushless motor capable – via external brushless controller currently
    • Specification
    Type:Ultra Micro
    Number of Channels6
    Modulation:DSM2
    Band:2.4GHz
    Dimensions (WxLxH): 27.75 x 23.45 x 8.10mm
    Weight:3.9 gram
    Voltage Range:3.2 - 4.2
    Antenna Length:31mm
