JET MIRAGE DF45 (EP DUCTED FAN)

JET MIRAGE DF45 (EP DUCTED FAN)

Stock Code 10115

Kyosho

RRP: £109.99

£89.99

Delivery time: 1-3 working days


< Back to list




Overview

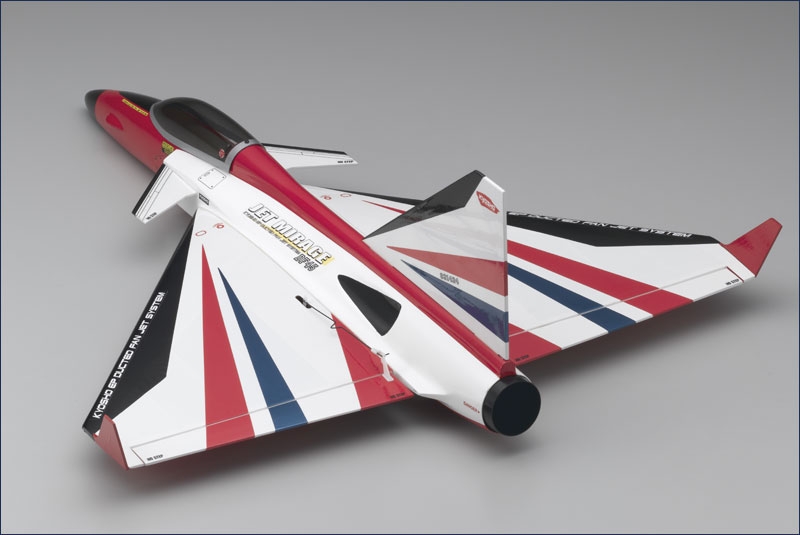

Kyosho’s many years of ducted fan design know-how combines with the latest brushless motor and lithium polymer battery technology to realize the true dream machine. With a width of just 520mm, the advanced precision ducted fan unit built into the fuselage produces about 270g of (basic) thrust. With a delta wing that generates excellent aerodynamics, realistic fighter plane performance is realized with the combined elevator and aileron control (elevon). In addition, the FRP fuselage and film covered balsa main wing, tail wing and canard (front wing) are almost completely pre-assembled. Only a few small assembly steps and servo linkage connection is required to get this delta-wing jet fighter airborne and ready for action.

Stunning FRP fuselage with delta wing design. The dream of jet flight is realized in electric.
Amazing flight performance in a practical size!

Required for operation:-
  • 4-channel transmitter & Receiver
  • 3 micro servo (1 for swing wing)
  • Brushless ESC 25amp
  • Battery / 11.1V-800-900mAh Li-Po (Lithium Polymer)
  • Battery Charger compatible with Li-Po
  • Balancer for Li-Po



Features
  • True delta wing with elevon and no tail wing delivers excellent control characteristics and stability.
  • Features one-piece motor case and fan. Originally developed design of stators and back cone produces amazing thrust from the ultra-small size unit.
  • Shape of winglets and wing edge treatment contributes strongly to stability around the yaw axis. Reproduces the excellent control and posture of delta wing airplanes.
  • The one-piece brushless motor and fan produces an awesome 270g of (basic) thrust.
  • One-piece shroud and brushless motor generates 50,000Rpm for awesome thrust.
  • Ultra small size allows the ducted fan unit to be built inside the sharp jet fuselage form.
  • 11.1V -800-910mAh lithium polymer battery provides more than enough power.
  • Includes factory assembled one-piece main wing, film covered balsa canard (front wing) and vertical fin.
  • Simply install the ducted fan unit and attach the linkages to complete this ARF kit.
    • Specification
    Length
    		625mm
    Width
    		520mm
    Weight
    		340g (approx.)
    Wing Area
    		9.5dm2
    Wing Load
    		35.8g/dm2
    R/C System
    		（Sold Separately）
    Thrust
    		270g approx. (with 11.1V Li-Po battery)
