Features

• FPV transmitter: You can see drone fly picture and video over the screen
• Signal frequency: 2.4G and 5.8G. 280-320 meters route and image transport
• Channel: 10 plus channel
• GPS module: inserted GPS module
• Dimension: 19 * 16 * 6 cm(include battery)

Function

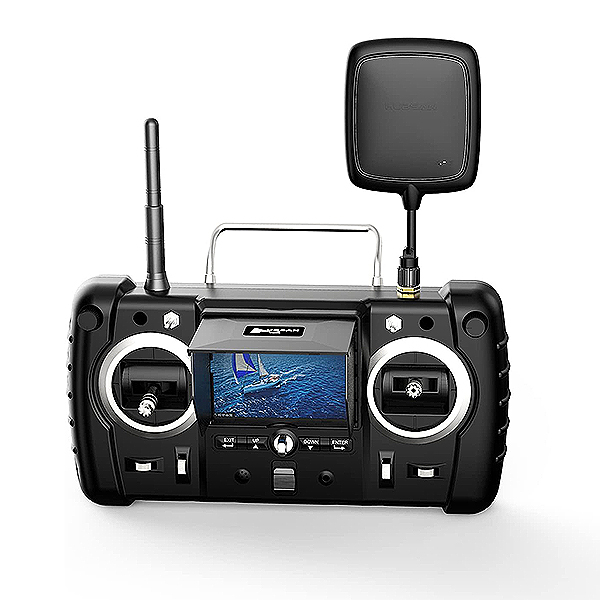

To keep video transmission clear and avoid interference,make sure the H906A's 5.8Ghz antenna logo faces the drone.Also be sure to fly the drone approximately within 1000 meters of the transmitter .During flight,the antenna and its signal path must be unobstructed to maximize the video and control range.Bend the antena so that its logo is as directly pointed towards the drone as possible.

Binding Quads to the H906A transmitter

1. Hold the "ENTER"key and power on the transmitter until "Systen Initialize" appears on the LCD screen.
2. Release the Enter key when the screen changes to display "Blind to Plane".
3. Power on the quad and place it very close to the transmitter.After a few seconds,the transmitter should then beep,indicating that binding has been successful.
4. If this doesnot happen and the drone's LEDs begin to rotate clockwise,the blinding is unsuccessful.Please power off the quad and repeat the above steps.
