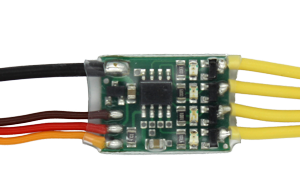

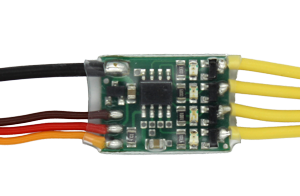

Beier 4-way switch module
Stock code RC-SM-4Brand Beier
Available for same day despatch Mon–Fri if ordered before 2pm, when possible
Download Product Specification
With the switching module RC-SM-4, lights and other loads (e.g. motors, pumps, relays) can be switched directly via a channel of an RC remote control.
There are 4 outputs available on the switch module, which can be loaded with a current of up to 4A. However, the total current of all outputs must not exceed 10A.
The states of the 4 outputs are indicated by colored LEDs. It is easy to see which of the 4 outputs are currently switched on.
The RC-SM-4 has 15 different switching modes that can be selected via setup:
ModeFunction
1:4-way memory short / long
2:2-way memory short / 2-way momentary long
3:4-way memory via areas A, B, C, D
4:4-way momentary via areas A, B, C, D
5:4-way memory via counting (EKMFA - A)
6:4-way memory via counting (EKMFA - D)
7:Pulse when moving
8:4-way light switch single (step switch)
9:4-way light switch combined
10: Indicator (steering), hazard warning lights, light 1+2
11:Indicator (memory), hazard warning lights, light 1+2
12:Indicator (automatic shutdown), hazard warning lights, light 1+2
13:Indicator (memory), light 1, light 2
14:Brake light, light, reversing light
15:Flasher, running light
When the RC-SM-4 is shipped, mode 1 is set in advance.
For modes no. 3, 4, 7, 10 and 14, a proportional control element (stick, slide control, rotary control) is required at the radio, since the RC-SM-4 has to evaluate proportional (stepless) signals here.
In all other modes, a 3-position switch on the radio is sufficient to control the outputs. However, proportional controller can also be used here.
