Beier Twin motor speed controller 2x30A

The double speed controller has been designed especially for RC tracked vehicles and ships with two brushed DC motors. Both drive motors can be controlled completely seperately or with the internal dual mixer function.

The realistic and sensitive performance guarantees a lot of driving fun.

With various setting options the speed controller can be easily adjusted to all model requirements and driving behaviours. All settings can be set with DIP switches and the software "Drive-Teacher".

The speed controller is equipped with 8 switching outputs to connect LEDs and other lights.

All light and additional functions can be controlled with nautic and multiswitch modules.

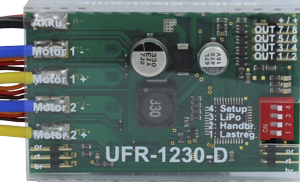

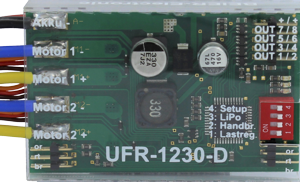

The speed controller UFR-1230-D has following characteristics:

• Supply voltage 6 - 18 V
• Maximum motor current 2 x 30 A (short-term 60 A)
• PWM pulse frequency 20 or 40 kHz
• 8 switching outputs for lights (for instance for braking, driving backwards, flashing)
• Powerful BEC with 5,6 V and 3 A continous current (short circuit proof)
• 3 proportional channels (throttle, throttle 2 or steering, and control channel)
• 2 Proportionalausgänge (output for sound module and steering servo)
• Additional functions controllable with nautic and multiswitch modules
• Failsafe in case of receiver signal disturbances (motor stop)
• Protection when switching on supply voltage
• Battery voltage monitoring
• Temperatur monitoring
• Short circuit protection at motor output stage
• Options adjustable with DIP schwitches:
• Load regulation on / off
• Parking brake on / off
• Choice of battery type: LiPo / other
• Teaching function (setup)
• Additional functions are adjustable with the Windows-software "Drive-Teacher" and the data cable K-USB-2 (optional available):
• Firmware update
• Diagnosis
• Invertion of channels
• Deactivation of low voltage monitoring
• Reduction of driving backwards speed by 50 %
• Selection of PWM pulse frequency between 20 or 40 kHz (for bell-armature motors)
• Adjustment of load regulation
• Activation / adjustment of inertia
• Adjustment of parking brake sensitivity
• Adjustment of two throttle curves
• Configuration of switching outputs (output types, brightness, etc.)
• Configuration of light switch (controllable with prop. channel X3)
• Configuration of control channel X3
• Configuration of nautic / multiswitch modules

The speed controller is delivered ready for operation with a standard configuration (see screenshots in operating manual). The data cable is only required in case standard settings need to be changed.
