Specifications

Type: 1/10th, Brushless Sensored ESC
Applications: 1/10th Drift car, Sensorless or Sensored brushless Motors, KV Rating/T Count ≥8.5T
Recommended motor: Best when paired with D10 Premium brushless motor
Cont/Peak Current (i): 100A/800A
Input Voltage: 2S Lipo
BEC output: 5-7.4V,5A
Wires / Connectors: Black-13AWG-250mm*2
Output connectors: 3.5mm male plug

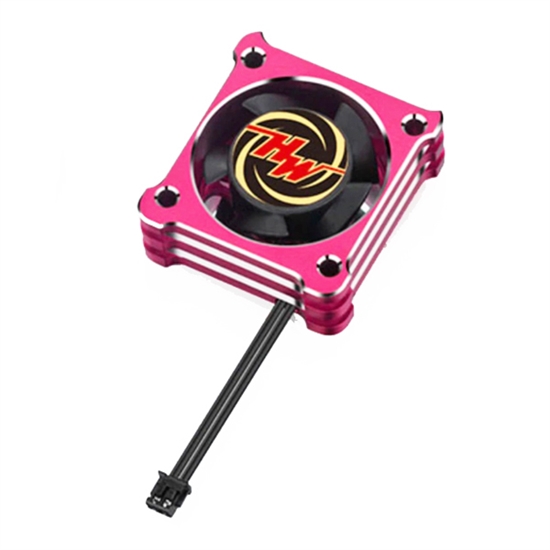

Fan size: 30x30x10mm
Fan Voltage Range: 5-7.4V Powered by BEC
ESC Programming by: LCD Program Box (PC) / OTA Programmer (Independent programming port)
Firmware Upgrade: Supported
ESC size/Weight: 40.7x35.0x32.0mm(w/Fan) / 95g (w/wires)
