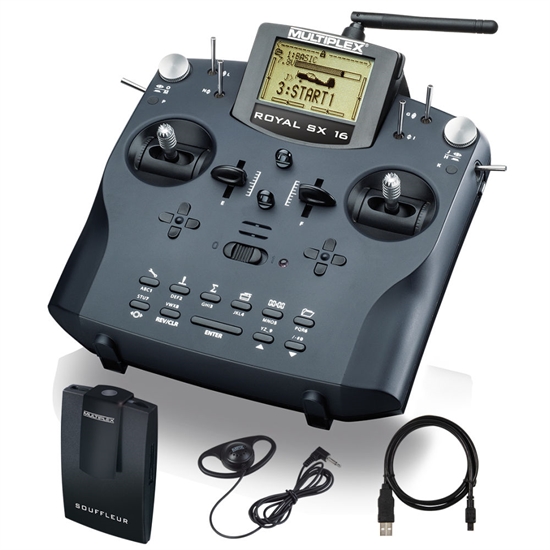

The ROYAL SX 16 with voice output
The handheld transmitter with the proven 2.4 GHz transmission technology M-LINK for the demanding amateur pilot and expert.
Many victories and titles have been achieved with ROYAL technology.

Features:
•     Universal voice output freely and individually configurable
• Comprehensive setting and mixing options for surfaces and helicopter
models •  Minimal programming effort  thanks to various model templates for surface and helicopter models
• Free function  assignment for  encoders, switches and servos
• Up to 4 flight phases per model with phase-specific trim and Expo setting
• 3 timers and additional model and transmitter operating time
• 5 function keys and 2 3D digi-adjusters for simple, user-friendly programming
• 6 menu keys for direct access to the main menus
•  Plain  text menu navigation in various national languages ​​(DE, EN, FR)
• Ergonomically optimized housing design for hand and desk transmitter operation
• Folding display
• Digital trim via trim cross, flight phase-specific
• MULTIPLEX multifunction socket (charge transmitter battery, teacher / student operation, PC interface for firmware updates, data management and simulator operation)

Further advantages are:
• The proven 2.4 GHz transmission technology M-LINK is integrated in the transmitter.
• The binding operating modes and the power reduction for range test are activated easily and conveniently.  The FAIL-SAFE positions in the receiver can be set from the transmitter using the menu.

16-channel operation
As a special feature, the ROYAL SX 16 offers the transmission of 16 fully proportional channels.  Four of these are additional channels.  These always work with the full servo travel and are intended for special functions.  In order to use the additional channels, the 16-channel receiver RX-16-DR pro M-LINK is required.

Return channel / telemetry
When using a receiver capable of telemetry, the current voltage of the receiver power supply is shown on the display of the transmitter.  If the value falls below an adjustable min. Voltage, an acoustic signal warns of an empty receiver battery.  Without a sensor, the connection quality (LQI) can also be shown on the transmitter display in% values.  An additional safety plus!
In addition, up to 15 telemetry data from the model (depending on the sensor system connected to the receiver, e.g. voltage, current, temperature, etc.) can be shown on the display (application examples: motor temperature, drive battery voltage, current consumption of the drive).

Voice output
The handy voice output device: prompter is for telemetry data and vario tones.  He clicks into the radio connection between the telemetry receiver in the model and the remote control.  No cable connection to the transmitter.  This means that the prompter is completely free and can be used universally.  Only a single binding is necessary.
Sound
• high quality earphones
• adjustable volume
• top sound quality also for precise reproduction of vario tones for glider pilots
• Language: German
Free and individually configurable
• Immediately ready for use thanks to optimized factory setting
• Selective voice output / announcements: very easy to set up freely and individually via PC.  To use our freeware MULTIPLEX launcher with 5 typical telemetry configurations in the model, you need the USB PC cable (UNI) # 8 5149. Data announcement
:
  - manually controlled (via control function on the transmitter)
  - time-controlled alarm-controlled
  - threshold-  controlled

super fast transmission
Thanks to a digital interface to the RF module, very fast, high-resolution and precise transmission of the control signals is possible.  The ROYAL SX M-LINK works with a servo cycle time of 14 ms in 12-channel operation (or 21 ms in 16-channel operation) with a resolution of 12 bit (3872 steps).  Switch between normal and fast response.  If 14 ms are too fast for the servos used, the cycle time can be set to 21 ms.

Quick changeover
If you still want to use receivers in conventional FM technology from your inventory (PPM, M-PCM), this is not a problem.  The ROYAL SX M-LINK can also be converted on the airfield within a minute: the 2.4 GHz HF module HFM4 M-LINK with 2.4 GHz antenna is easily replaced by the existing FM HF module and the long transmitter Telescopic antenna replaced.

Graphic LC display
• 132x64 pixels, clear display of all information
• Contrast adjustable in the menu
• UV-stable and anti-reflective
• Foldable (inclination angle 0 ° / 20 ° / 40 °)
• Optimal viewing angle for every application!

Comprehensive basic equipment within easy reach
• 2 switches, 2 levels
• 2 switches, 3 levels
• 2 switches on the side, 3-stage
• 2 buttons, on the side

New precision stick units from the PROFI TX
• Ball bearing
• Easy locking or friction right or left to activate (for gas, spoiler or pitch)
• Reset force of the stick (neutralization) adjustable
• Ergonomic adjustment by steplessly turning the entire stick unit by up to 15 ° (thumb follows natural movement when using the hand transmitter)

Clear keyboard with 11 keys
• Direct access to the 6 main menus (top row of keys)
• Selection of menu items, changing and confirming Entries, including (bottom row of  buttons  )

multifunction
socket  (rear)  • Charge the transmitter battery
• Connect teacher / student cable
• PC interface for data transfer (data backup, firmware update)
• PC interface for flight simulators

Two 3D digi-adjusters
• Convenient and quick to set
• Settings can be changed in flight

Two sliders
• For proportional control functions
• With Latching and tactile center  catch

Digital trim
•
Ergonomically  optimized arrangement  • Graphic trim position display on the display
•  Trimming  step size selectable (0.5 - 1.5 - 2.5 - 3.5%)
• Automatic saving of the trim when the power is switched
off Transmitter
- change the model memory
- Change of flight phase (flight phase-specific trim)

transmitter battery PERMABATT + 2100 mAh built in
For extra long operating time (> 25 hours  )  Can be

retrofitted:
• 2 or 3-stage switch or button in aluminum  stick handle
