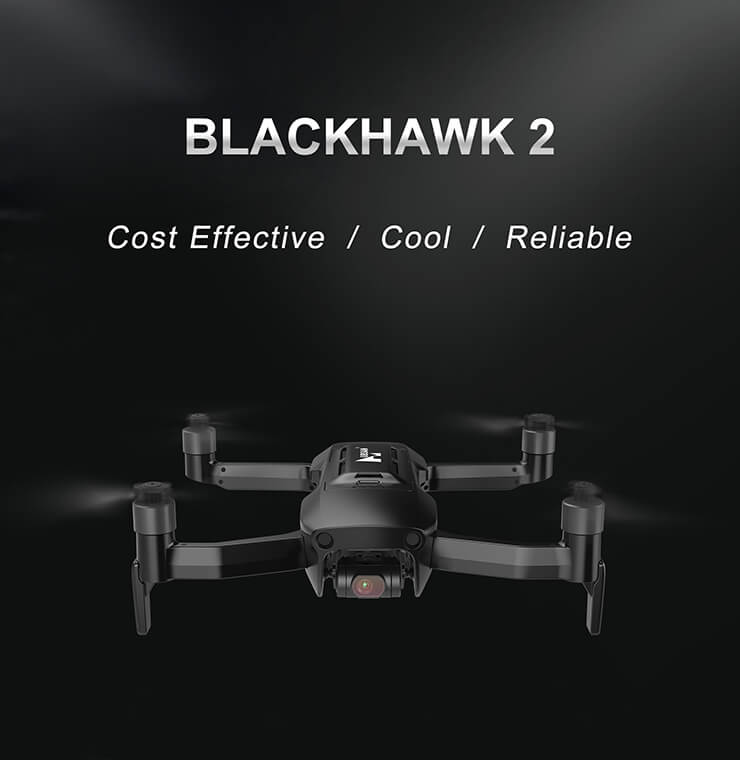

Features

• Cost Effective, Cool, Reliable
• Ultra-Clear 4K 30-frame Video
• 1/2.6inch image sensor, 100Msbp video bit rate
• 5KM HD Transmission Distance
• 3-Axis Stabilized Gimbal
• Grade 7 Wind Resistance
• Intelligent Battery
• Maximum Flying Time up to 33mins
• Portrait Mode & Upward Vision Mode

Specifications

Dimensions Expand: 229.55 x 178 x 73.6mm
Dimensions Folded: 118.7 x 172.5 x 67.6mm
Diagonal Wheelbase: 266mm
Colour: Black
Take-Off Weight (with battery): About 580g
Hover Accuracy Indoor: Vertical ± 0.1m, Horizontal ± 0.1m
Hover Accuracy Outdoor: Height<5m, Vertical < Height * 0.02m, Horizontal < Height * 0.02m Height>5m, Vertical ± 0.1m, Horizontal ± 0.5m
Max Ascension Speed: 3m/s (N), 4m/s (S)
Max Descent Speed: 1.5m/s (N), 3m/s (S)
Maximum Horizontal Flying Speed: 8m/s (N), 12m/s (S)
Maximum Take-Off Altitude: 3000m
Max Wind Speed Resistance: Level 6 wind, wind resistance mode can withstand Grade 7 wind
Max Tilt Angle: 30°(S), 20°(N), 20°(F)
Positioning: GPS + GLONASS, Beidou Satelite
Flight Duration: Hovering for 29 minutes (Windless, measured in 2-4 meters hovering), Slow Flight Time 33 minutes

Power System

Maximum Working Current: 25A
Propeller Model: Foldable & Diameter 158.6mm
Colour: Black
Motor: Outward Rotation Brushless Motor 1503, KV2820
ESC: Digital ESC Brushless 20A x 4

Camera

CMOS Image Sensor: 1/2.6inch CMOS, 12 million effective pixels
Lens Specifications: FOV 80°
Aperture: f/2.2
EFL: 3.5mm
Distortion: <1.5%
Focus Point: 0.5m to ∞
Video Resolution 4K: 3840x2160@30fps
Video Resolution2.7K: 2720x1530@30fps
Video Resolution 1080P: 1920x1080@30fps
Shutter Speed: 1/25s-1/8000s
Video Bitrate: 45Mbps-100Mbps
Photo Format: JPEG
Video Format: MP4 (H.264/MPEG-4 AVC)
Portrait Mode: Support
Control Method: APP, Remote Control
Firmware Upgrade: OTA
USB Interface: Micro-USB
Supported SD Cards: MicroSD Card, U3 or Class10 above 16G/32G/64G/128G

Wireless Transmission System

Image Transmission System: SyncLeas 1.0
Effective Range: FCC: <=5KM CE: <= 5KM; SRRC: <= 5KM
Band Mode: Frequency Button
Transmission Delay: Within 200ms
Antenna Position: Forearm Support Foot
Remote Control: HT16MY

Gimbal

Gimbal: HY817C
Stabilization: 3-Axis (tilt, roll, pan)
Degree of Freedom: Triaxial
Max Pitch Speed: 120°/s
Mechanical Range Pitch: -120° to 45°
Mechanical Range Roll: ± 35°
Mechanical Range Yaw: ± 35°

Flight Controller

FC Version: Third-generation Flight Controller
Basic Flight Mode: Wind Resistance Mode / Sports Mode / Normal Mode
Altitude Hold Mode: Tof, Barometer
Fixed-point: Visual Optical Flow, GPS
Unlock/Lock: Outer "Eight" Unlock/Lock
Fill Light: Support 0.5m-5m low light environment to automatically turn on the light
One Key Take-off/Landing: APP Supported,Remote Control Unsupported
Headless Mode: Supported
Out of Control Protection: Supported
Low Battery Protection: Automatically Return to Home and Land on Low Battery
Home Visual Recognition (search for drone apron): Supported
Visual Tracking: Third-generation Tracking Technology (ATVT 3.0)
Waypoint Flight: Supported
Flying Around: Supported
Auto Drifting: Supported
Intelligent Battery: Cell Balancing, Intelligent Power Estimation, Overcurrent Protection, High Temperature Protection, Overcharge Protection, Over-discharge Protection, Auto-Discharging Protection, Struggling Mode, Intelligent On-Off Control.
Motor Stall Protection: Supported

Remote Control

Colour: Black
Wireless Transmission Solution: SyncLeas 1.0
Display: NO Support
Operating Environment Temperature: -5 Deg.C- 50 Deg.C
Effective Range: FCC: 5KM CE: 5KM; SRRC: 5KM
Built-In Battery: 3200mAh
Mode: Mode 2 (Left Hand Throttle)
Buzzer: Support
Working Time: 2.5h (Normal Flight Time)
Interfaces Type: Lighting / Micro USB / Type-C

Battery

Battery Type: Li-Po Battery 4S
Capacity: 2800 mAh 40.32Wh
Standard Voltage: 3.6Vx4=14.4V
Charging Limit Voltage: 4.2Vx4=16.8V
Discharge Rate: 8C
Charging Time: 180 minutes
Weight: 110g
Working Environment Temperature: -5 Deg.C- 40 Deg.C
Charging Environment Temperature: 0 Deg.C- 40 Deg.C
Smart Battery: Cell Balancing, Intelligent Power Estimation, Overcurrent Protection, High Temperature Protection, Overcharge Protection, Over-discharge Protection, Intelligent On-Off Control.
Battery Smart Buckle: Supported
Low Battery Protection: Support (Turn on the battery after the power is less than 1%. In order to prevent over-discharge, the battery no longer provides external power output
Struggling Mode: Supported
Internal Resistance Monitoring: Supported
HBLog: Supported
Intelligent Diagnosis: Supported
Remote Locking: Supported
Online Upgrade: Supported

APP

APP Name: X-Hubsan 2
Mobile Device Requirements: iOS 10.0 or higher, Android 6.0 Or higher

What's Included

• 1 x BlackHawk2 Drone
• 1 x Remote Controller
• 1 x Drone Battery
• 1 x Pair of Propellers
• 1 x Intelligent Charger
• 1 x Micro-USB Cable
• 1 x Micro-USB RC Cable
• 1 x USB Type-C RC Cable
• 1 x Gimbal Cover
• 1 x Screwdriver
• 1 x Manual
