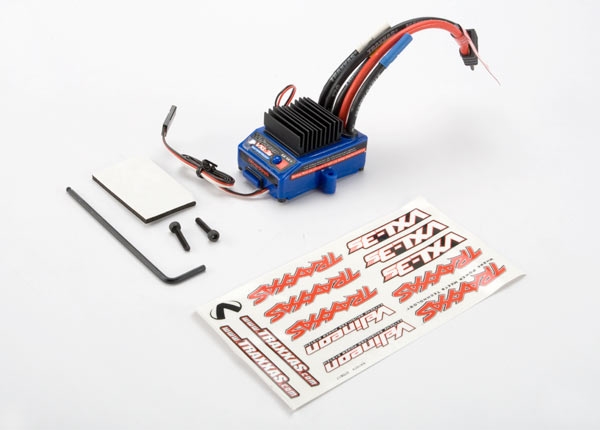

The Velineon VXL-3s forward/reverse waterproof electronic speed control simplifies brushless technology with easy, built-in profiles and intuitive programming. Tri-mode operation auto detects the motor type for brushed, sensored or sensorless brushless motors. The VXL-3s uses advanced circuit design that allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems.

Specifications:

• Input voltage................... 4.8 - 11.1V (4 - 9 cells NiMH or 2S - 3S LiPo)
• Supported motors.......... Brushed / Brushless / Sensorless brushless
• Motor limit.......................None
• Continuous current........200A
• Peak current.................... 320A
• BEC voltage......................6.0V DC
• Transistor type................ MOSFET
• On-resistance................. 0.00075 O Max (0.006/8 FETs)
• PWM frequency.............12,000Hz
• Battery connector......... Traxxas High-Current Connector
• Motor connectors..........TRX 3.5mm bullet connectors
• Motor/battery wiring....12-gauge Maxx Cable
• Thermal protection....... 2-stage thermal shutdown
• Case size (l/w/h)............ 55mm (2.19")/ 39mm (1.54")/ 33mm (1.3")
• Weight............................ 90g (3.17oz)

Profile Selection:

• Profile #1 (Sport Mode): 100% Forward, 100% Brakes, 100% Reverse
• Profile #2 (Race Mode): 100% Forward, 100% Brakes, No Reverse
• Profile #3 (Training Mode): 50% Forward, 100% Brakes, 50% Reverse
