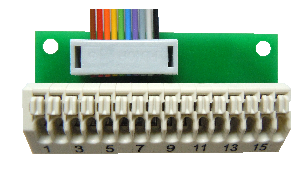

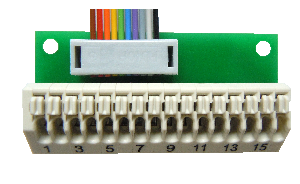

The AKL-10 allows a comfortable wiring of the switching outputs for these modules:

• Sound module USM-RC-2
• Extension module EXM-2

At the spring-loaded terminal the outputs 1-10 are available for an easy connection of consumers.

The outputs 11 to 16 are interconnected for an easy distribution of the plus pole.

The terminal can be connected directly to the sound and extension module with a pluggable ribbon cable.

The plus pole must be connected separately to each consumer, using clamp terminals 11 to 16.
