With the AKL-10-R consumer with a high power consumption, such as motors, smoke generators or lights with up to 10 A can be easily connected to the switching ouputs of our sound module USM-RC-2 and the extension module EXM-2 without additional soldering.

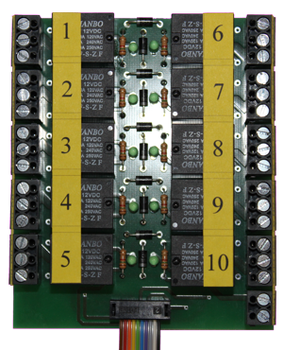

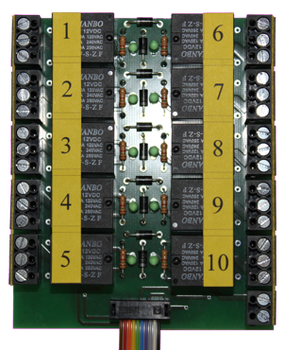

The AKL-10-R has 10 separate toggle switches with a maximum switch capacity of 240 W. This can be for example a current of 10 A at a voltage of 24 V. Each relay is indicated with a green LED while it is triggered.

The terminal can be connected directly to the sound module USM-RC-2 with a pluggable soldered ribbon cable.

The positive battery voltage is connected to the black 2-pole screw terminal.

This is required to trigger the relays. To the 3 pin screw terminals up to 10 different consumers can be connected easily without soldering work.

The terminal clamp is available in two versions:

- AKL-10-R-6V for a supply voltage between 5 and 9 V,

- AKL-10-R-12V for a supply voltage between 9 and 14 V.
