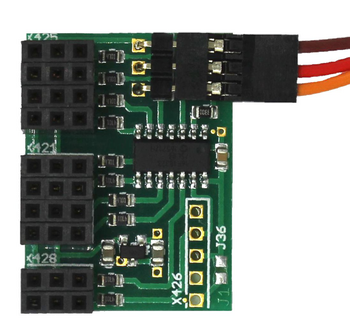

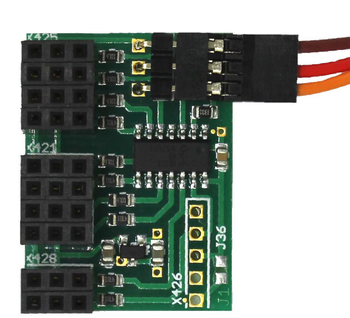

Beier Multiswitch decoder MSC-10-C for CARSON Reflex Stick MULTI PRO 14 Channel without LCD for 10 switches

With the multiswitch converter modules MSC the signals of 8 or 10 switches of the
CARSON Reflex Stick MULTI PRO 14 Channel can be collected and transferred via
only one proportional channel to following BEIER-modules:
Sound speed controller SFR-1, SFR-1-D and SFR-1-HL
Sound module USM-RC-2, USM-RC-3
and USM-HL-2
Speed controller UFR-1230 and UFR-1230-D

The MSC modules are plugged directly on the receiver of the CARSON Reflex Stick MULTI PRO 14 Channel.

The 8 or 10 switches of the radio can be used to control functions of the sound module or the speed controller.

The MSC is available in 3 different versions:

MSC-8-C:
Transfers the signals of 8 switches. Channels 5, 6 und 9 - 14 of the receiver are occupied by the MSC-8-C.
Channels 1 - 4, 7 and 8 of the receiver stay free.

MSC-10-C:
Transfers the signals of 10 switches. Channels 5 - 14 of the receiver are occupied by the MSC-10-C.
Channels 1 - 4 of the receiver stay free.

MSC-8-C-LCD:
Transfers the signals of 8 switches. Channels 5, 6 und 9 - 14 of the receiver are occupied by the MSC-8-C-LCD.
Channels 1 - 4, 7 and 8 of the receiver stay free.

All MSC have a size (without receiver) of: 24 x 32 x 12 mm.
