The MSM-1 at a glance for Sound + Light Control:

• Suitable for many types of RC models with standard remote control
• 14 different model types with all sound and light settings
• Plug & Play
• No computer required for model selection or other settings
• Suppy Voltage between 5 and 14 V DC
• 6 proportional inputs for controlling sound and light functions

Model types:

• 3 x Trucks
• 2 x Cars
• 1 x Emergency vehicle
• 1 x Tractor
• 2 x Construction vehicles
• 2 x Tanks
• 3 x Ships

Sound:

• Motor sounds for 14 different model types
• Various additional sounds depending on the model type: e.g. horn, fanfare, ship's horn, cannon shot, machine gun fire, radio message, hydraulic noise, animal noises, siren, announcements
• Powerful built-in amplifier for optimal sound quality

Light:

• 8 switching outputs for connecting LEDs, lamps, relays etc.
• Different outputs depending on the model type: e.g. light, indicator, brake light, reversing light, cannon flash, machine gun flash, warning light, flasher
• Connection for an IR light module for forwarding the light and servo signals to semi-trailers and trailers
• Gadgetry
• Loudspeaker with housing
• Terminal clamp for easy connection of LEDs
• Battery Y-cable
• Volume control potentiometer

Description:

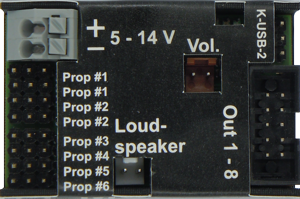

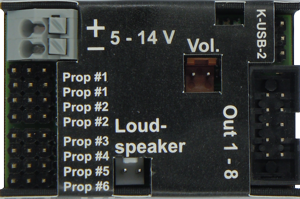

The MSM-1 is a fully preconfigured sound and light module for RC models. There are 14 different model types with all sound and light settings fix stored in the memory. You can choose from:

• 3 Trucks
• 2 Cars
• 1 Emergency vehicle
• 1 Tractor
• 2 Construction vehicles
• 2 Tanks
• 3 Ships

The different models can be easily selected using a standard RC radio. No software, computer or other programming hardware is required to select the model.

The MSM-1 has 6 proportional inputs that can evaluate 6 channels of an RC receiver. The 1st channel is always the gas/throttle channel and the 2nd channel is the steering in most models. Additional sounds and lights can be controlled via the remaining 4 channels. The sound and light functions differ depending on the model type.

To achieve various lighting effects, the MSM-1 has 8 switching outputs to which, for example, LEDs, lamps and relays can be connected. Lighting functions such as low beam, reversing lights, brake lights, turn signals, hazard lights, etc. can be controlled easily to match sound and movement.

Each of the 14 preconfigured models has its own driving sound (engine sound) and additional sounds relating to the model type. All functions can be triggered via the RC radio.

Attention: The sounds and settings of the 14 models cannot be changed on the MSM-1!

If you want to be able to change sounds or other settings yourself, we recommend the sound module USM-RC-3.
The MSM-1 can also be viewed as a "simple" plug & play sound module and is very suitable for beginners.

Technical data:

• Supply Voltage (Ub): 5 – 14 V DC
• Power consumption: Stand-by current: ca. 60 mA
• Operation: Dependent on volume and activated consumers
• Proportional inputs: 6 pieces PWM (1,000 - 2,000 ms)
• Switching outputs: 8 pieces
• minus switching – open collector:
• max. 1,5 A per output, total current of all outputs is not allowed to exceed 3,0 A
• Audio amplifier: 20 W
• Loudspeaker: 4 - 8 Ohm
• Volume control: By external poti (100 kOhm) and / or radio
• Storage for the sound data: Internal flash 64 MB
• Sound output: 16 Bit, Mono, 22 kHz

Model types: 14 models

• 3 x Trucks
• 2 x Cars
• 1 x Emergency vehicle
• 1 x Tractor
• 2 x Construction vehicles
• 2 x Tanks
• 3 x Ships

Available sounds:

• Driving sounds (starting sound, shutdown sound, starting sound, stopping sound, stationary sound, braking sound, reversing warning, cornering squeak, indicator sound)
• Various additional sounds depending on the model (horn, compressed air fan, ship's horn, depth sounder, turret turning, machine gun, cannon shot, radio message, animal noises, hydraulic noise, siren, announcements)

• Additional ports: Interface for data cable K-USB-2 (currently not working!) or IR transmitter diode for light modules LM-IR-8-1 and LM-IR-16-4
• Protection features: Current monitoring of the switching outputs
• Ambient temperature: 0 – 60° C
• Permissible relative humidity: Max. 85 %
• Size: 51 x 33 x 17 mm
• Weight: 18 g
