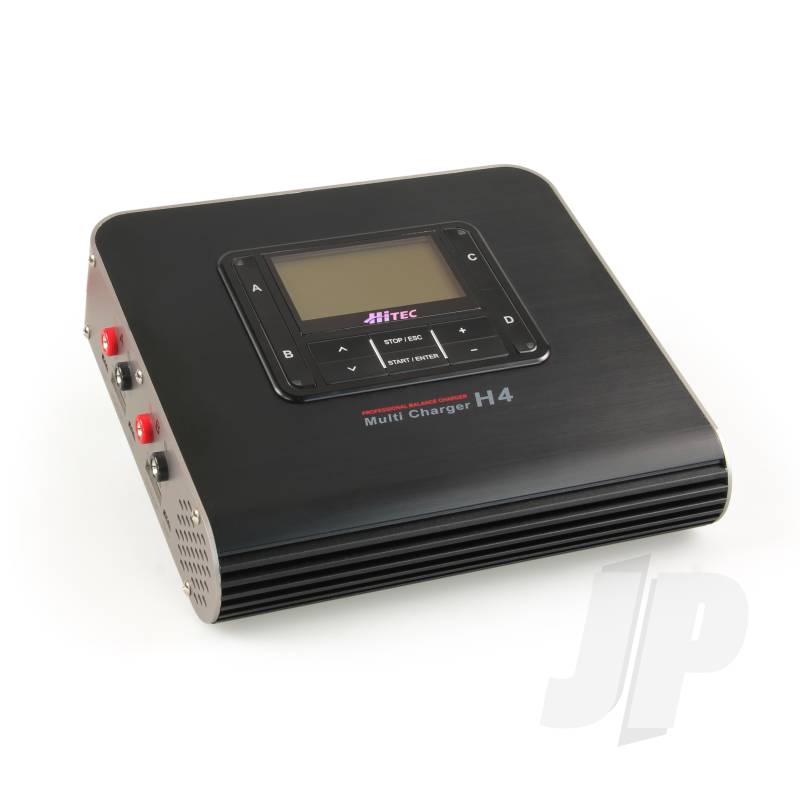

Hitec H4 Plus Smart Balance Charger 600W

H4 Plus Smart Balance Charger 600W

Out of stock

Click to enlarge

Hitec H4 Plus Smart Balance Charger 600W

Stock code 2229555

Brand  Hitec

  Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
£241.99Each

Key Features

  • 32bit High Performance Microprocessor
  • Battery Chemistry - 1-6 Li-Po, Li-Fe, Li-Ion, 1-15 Ni-MH/CD 1-12 Pb
  • Case - Full Aluminium
  • Charging Ports - 4 x 120 watts or 2 x 240 watts with Channel Bridge
  • Firmware can be upgraded using the HPP-22
  • H4 Profesional Smart Charger with Channel Bridge Technology
  • Input Voltage - 11-18v

Product Description

Its sleek, aluminum design, easy-to-read backlit graphic display and four micro-processor controlled charging ports with Lithium cell-balancing circuits, make the H4 ideal all electric airplane and helicopter pilots as well as demanding racers and backyard bashers. Each 120-watt port is capable of delivering up to 8 amps of charging power. The independent charging channels can also be paired to provide two independent 240-watt charge ports, or two120-watt ports with a single 240-watt charge port. This versatility, along with the H4s unwavering reliability, safety functions, upgradeable firmware and PC-interface capability using our HPP-22 PC Interface, make this a must-have charger.

  • Full Aluminum Case
  • 32bit High Performance Microprocessor Controlled
  • High Quality 128x64 Back Light Graphic LCD
  • High Power 120watt Per Channel
  • Hitec Channel Bridge Function
  • Li-Xx Storage Mode (Auto Detecting)
  • Ni-Xx Cycle Charge & Discharge (Up To 10-Cycle)
  • Built In Cell Voltage Level & Capacity Check Function
  • Lithium Chemistry Battery Discard Function
  • 12 Character Programmable User Name
  • Temperature Sensor Port
  • Upgradable Firmware Using the HPP-22
Input Voltage Range:DC 12 - 18 Volts DC
Required Input Amperage:40 Amps / 500 Watts
Charger Circuit Power:120 watts x 4 or 240watts x 2 Using Channel Bridge Function

Discharge Circuit Power:or 20 watts x 2 Using Channel Bridge Function
Charge Current Range:0.1 - 8.0 Amps per Channel or 0.1 - 16A Using Channel Bridge Function
Discharge Current Range:0.1 - 2.0 Amps per Channel or 0.1 - 4A Using Channel Bridge Function
LiPo,LiFe LiIon Balancing Current Drain:200mA per Cell
LiPo,LiFe LiIon Cell Count:1 - 6 Cells
Maximum NiCd/NiMh Cell Count:1 - 15 Cells
Lead Acid (Pb) Cells / Voltage:2 - 20 Volts
Dimensions (W x D x H):8.1 x 6.4 x 2.0
Weight:3.2 lbs
