Features

• 2 - line, 16 character, blue backlit, LCD makes the screen extremely clear and legible
• Built-in intelligent balancing circuit is designed to individually balance each cell on the connected lithium battery pack within the tolerance of 5mV during charge or discharge

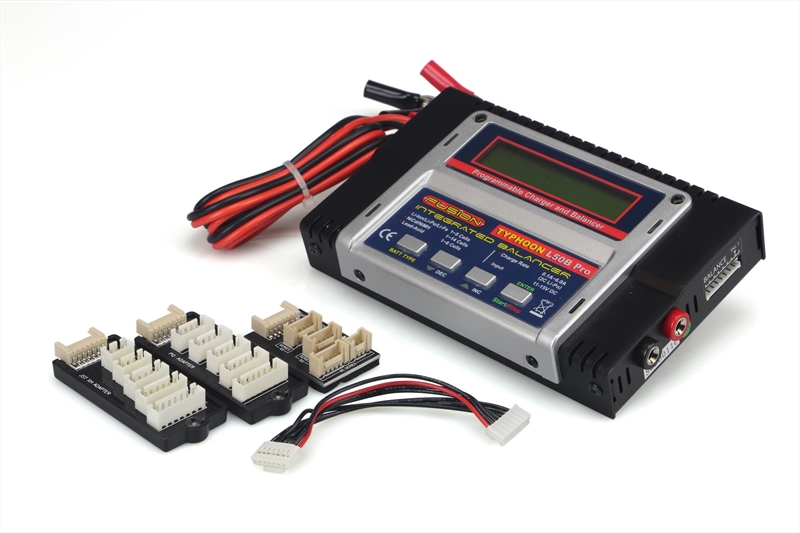

• Balancing plug adaptor boards are supplied to suit JST XH, FlightPower and Thunder Power batteries. Optional adaptors for Polyquest are available
• Voltage monitoring feature shows each actual cell voltage on the screen during balancing
• Various warning messages for incorrect input voltage, wrong connections, unsuitable battery condition and reverse polarity on output

Specifications

• Input Voltage: 11~15V DC
• Battery Type & Cells: 1~5 Li-Po, Li-Ion, Li-Fe / 1~14 NiCd, NiMH / 1~6 Lead Acid cells
• Battery Capacity 100mAh ~ 6000mAh adjustable ONLY for Li-Po, Li-Ion, Li-Fe
• Charge Rate: 0.1A ~ 6A Adjustable in 100mA steps (max 50W)
• Trickle Charge Rate: 0 ~ 200mA
• Balancing Max. Current: 280mA (Tolerance 5mV during charge)
• Charge Termination 'Zero Delta V' peak detection for NiCd/NiMH 'Constant current/constant voltage' for Li-Ion/Po Li-Fe and Pb
• Delta Peak Sensitivity: 5mV ~ 25mV for NiCd & 3mV ~ 25mV for NiMH (per cell)

This charger was reviewed in October 2008 by RC Model World. Please click here to read the review.
