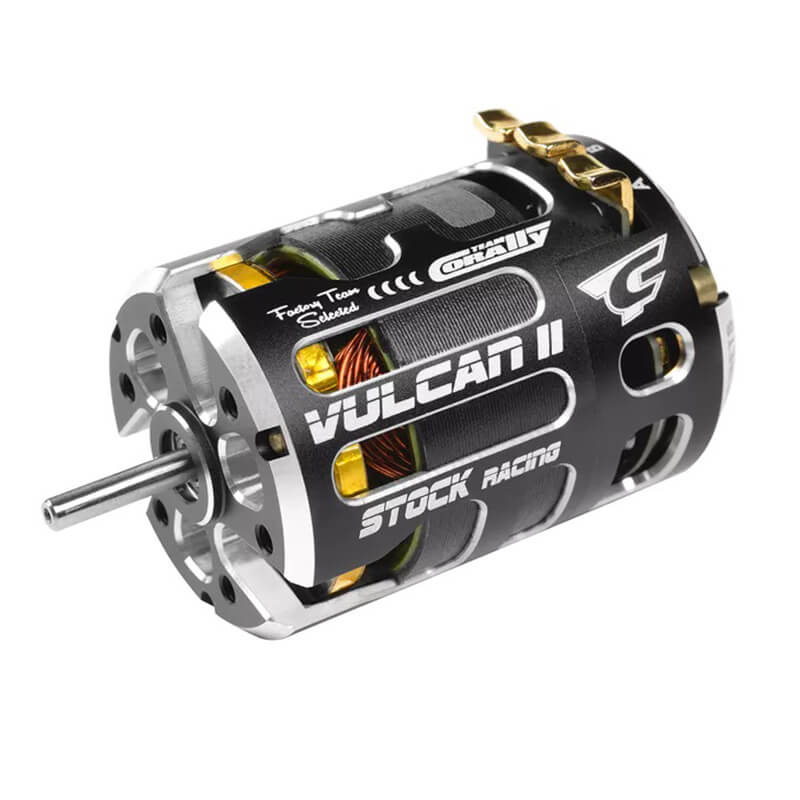

Specifications

Motor - Application: 1/12 Pan Car, 1/10 Buggy 2WD, 1/10 Pan Car, 1/10 Buggy 4WD, 1/10 Touring
Motor - Class: Stock Motor
Motor - Compliant: ROAR / BRCA / EFRA / IFMAR / DMC
Motor - Input Voltage Range (V): 1S - 3S Li-Po
Motor - IO (A): 2,5
Motor - KV (Rpm/V): 3000
Motor - Max. Amps: 37
Motor - Poles: 2-Pole Rotor
Motor - Resistance (Ohm): 0,04
Motor - Rotor Size: OD 12.5mm x ID 7.2mm x L 25.2mm - C-16185
Motor - Size ID: 540 Type
Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
Motor - Timing: Adjustable Timing
Motor - Turns (T): 17,5
Motor - Type: Brushless - Sensored
Motor - Watts: 130
Motor - Diameter. ø (mm): 35,8
Motor - Length (mm): 52
Motor - Mounting Holes: M3 @ 25.4 mm
Motor - Shaft Dia. ø (mm): 3.17 mm
Motor - Shaft Length (mm): 13
