Ripmax Quantum II 20 Speed - Brushless Motor
Stock code m-q2-20Brand Ripmax
Currently unavailable - please contact us for an delivery date or an alternative.

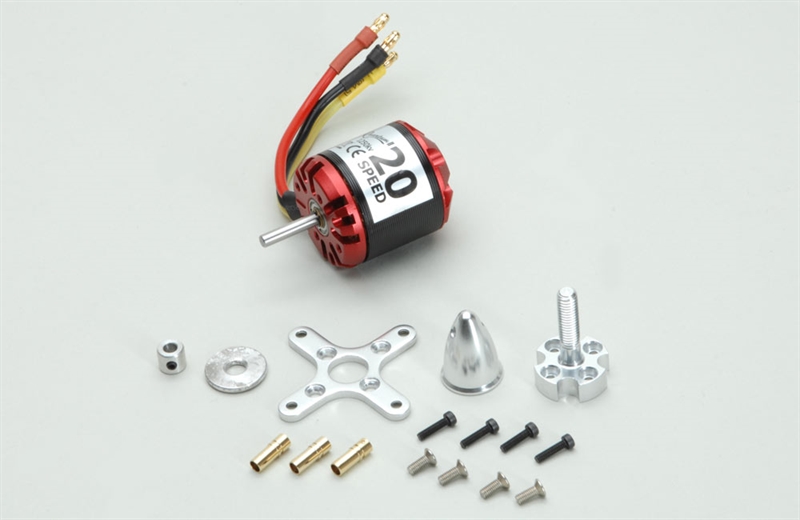

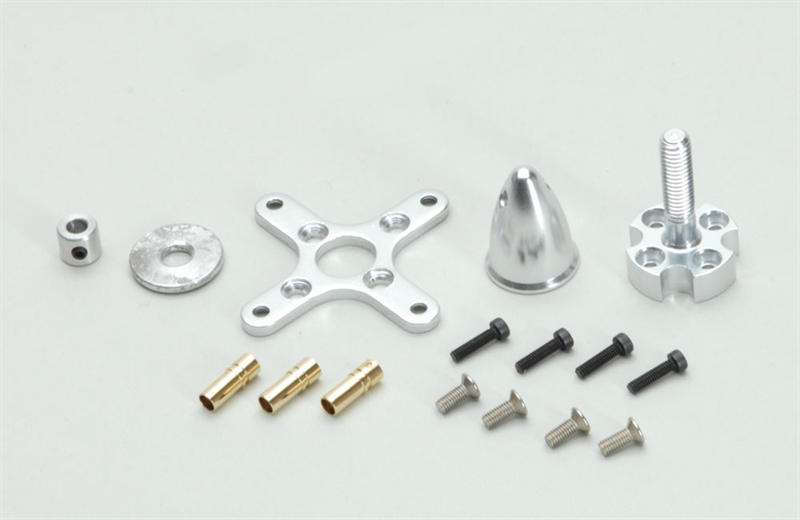

The range of Ripmax Quantum II electric motors are designed to offer performance, efficiency, great build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.
This .20 size speed motor is designed as an equivalent to a .20/21 2-stroke glow IC motor when used in higher speed,higher RPM applications such as the Ripmax Dagger (A-ARTF6906).
.20 Speed 2-Stroke Equivalent Setup:
• 4S 2200mAh Li-Po
• 60A Brushless ESC
• 7x7" Propeller
| Specifications | |
| Connectors | Gold 4.0mm Bullets |
| Length | 50mm |
| Weight | 151g |
| Max. Continuous Current (Amps) | 50A |
| Diameter | 35mm |
| KV RPM | 1250 |
| LiPo | 3 - 4S |
| Speed Controller | 40 - 60A (Rec.) |
| Shaft dia | 4mm |
