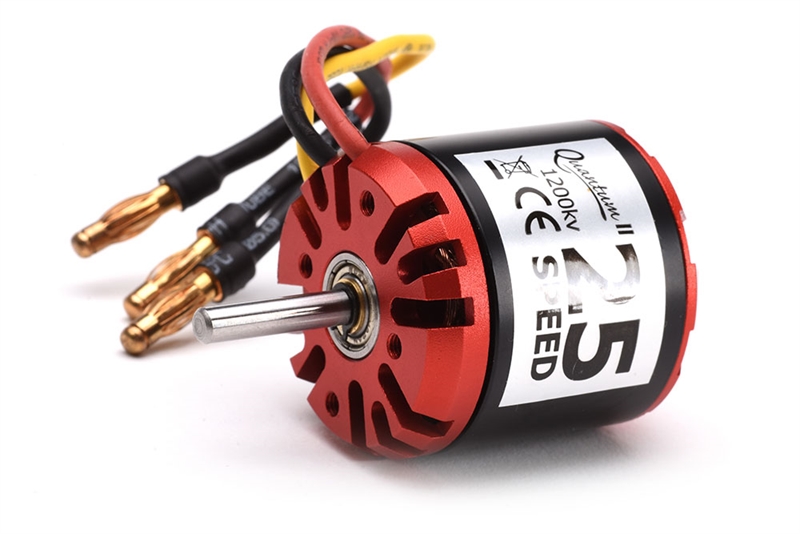

Ripmax Quantum II 25 Speed - Brushless Motor
Stock code M-Q2-25SBrand Ripmax
Available for same day despatch Mon–Fri if ordered before 2pm, when possible
This is a higher RPM, Speed version of the Quantum II 25 motor for high power/speed flight. It is ideally suited to the Ripmax Easy Street II with either 3S or 4S Li-Po batteries. Due to the higher current this motor requires, it needs a 60A ESC rather than the 40A ESC used on the standard version.
On 3S it works well wirth a 10" x 7" E APC propeller but if you want more performance we suggest a 9"x 7.5" E APC propeller on 4S for some extra punch!

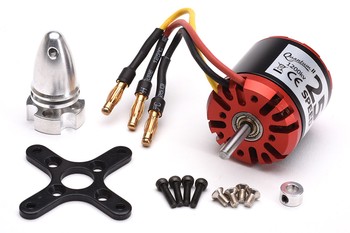

The Ripmax Quantum II range of electric motors are designed to offer performance, efficiency, build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.
| Specifications | |
| Connectors | Gold 4mm Bullets |
| Length | 50mm |
| Weight | 155g |
| Max. Continuous Current (Amps) | 52A |
| Diameter | 35mm |
| KV RPM | 1200 |
| Thread | M6 |
| LiPo | 2 - 4S |
| Speed Controller | 60A (Recommended) |
| Shaft dia | 4mm |
