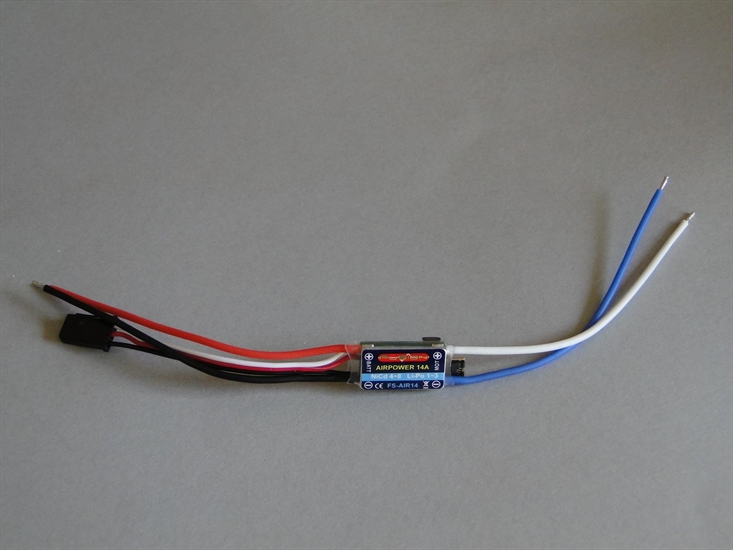

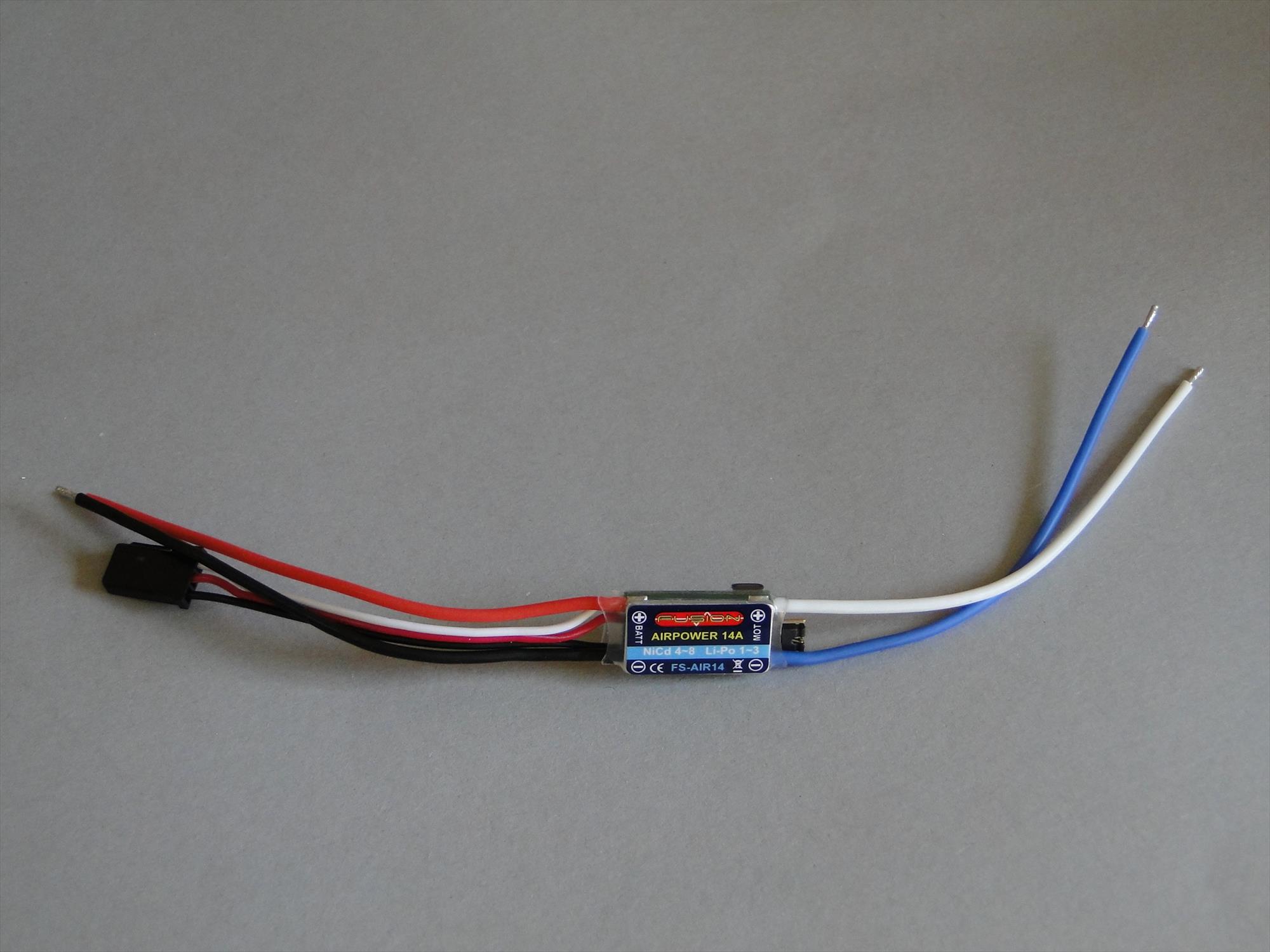

FUSION AirPower 14A N4~8/Li1~3 F

FUSION AirPower 14A N4~8/Li1~3 F

Stock code P-FS-AIR14

Brand  FUSION

  Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
£ 17.99 Each
Features
  • 'Safe Start' - to prevent accidental motor starts by disabling the motor circuitry until the throttle stick is moved to full throttle, then to the 'off' position
  • BEC (Battery Elimination Circuitry) - which allows the motor battery to power the receiver and servos. When the motor battery voltage is reduced to a set voltage per cell, the low-voltage cut-off circuitry stops the motor while continuing to supply power to the receiver and servos, eliminating the need for and weight of a separate receiver battery
  • Thermal Protection - which reduces the throttle to 70% when the maximum temperature is reached
  • Airpower ESCs can easily be adjusted for use with NiCd/NiMH or Li-Po/Li-Ion batteries
  • These ESCs function with brushed motors only!
&nbsp: P-FS-AIR07 P-FS-AIR14 P-FS-AIR25 P-FS-AIR35 P-FS-AIR50
Use Aircraft Aircraft Aircraft Aircraft Aircraft
Function Forward Forward Fwd/Brake Fwd/Brake Fwd/Brake
Brake - - Programmable Programmable Programmable
Frequency 2.5Hz 2.5Hz 1.3Hz 1.3Hz 1.3Hz
Cont. Current 7A 14A 25A 35A 50A
On-Resistance 7.0ohm 3.5ohm 2.3ohm 1.75ohm 0.8ohm
Input NiCd/NiMH 4~8 Cells 4~8 Cells 5~10 Cells 5~12 Cells 5~12 Cells
Input Li-Po 1~3 Cells 1~3 Cells 2~3 Cells 2~4 Cells 2~4 Cells
B.E.C 5.0V / 1.0A 5.0V / 1.0A 5.0V / 2.0A 5.0V / 3.0A 5.0V / 3.0A
Low Batt. Protection Yes Yes Yes Yes Yes
Temp. Protection - - Yes Yes Yes
Safe Start Yes Yes Yes Yes Yes
Switch - - Yes Yes Yes
Battery/Motor Cable 0.30mm2 0.48mm2 1.05mm2 1.68mm2 2.0mm2
Rx Cable 0.15mm2 0.15mm2 0.30mm2 0.30mm2 0.30mm2
Dimensions (mm) 15x10x7 21x11.5x7 25x17x11 32x17x11 35x18x11
Weight 4.4g 6.7g 19.5g 23.7g 26.4g
