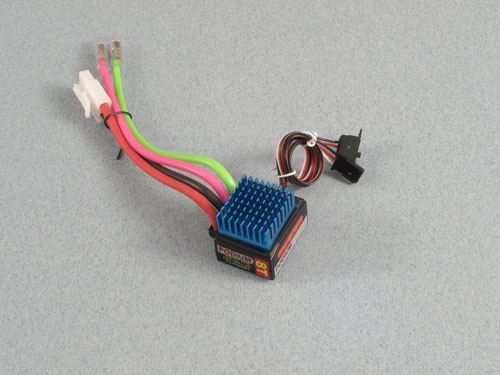

FUSION Podium ESC 8T Prog. N6~7/Li2 FNBR

FUSION Podium ESC 8T Prog. N6~7/Li2 FNBR

Stock code p-fs-pod08t

Brand  FUSION

  Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
£ 44.99 Each
Features (17T, 12T, 8T)
  • Fully Programmable
  • Excellent high output ESC
  • Ultra high frequency & performance
  • Forward & reverse w/A.B.S (Anti-lock Brake System)
  • Easy-to-use single button set-up
  • Speed up function
  • Reverse delay function
  • High-temperature safety cut-off system prevents overheating damage
  • Battery type for NiCd, NiMH & Li-Po can be seaprately set
  • Safety protection from over discharge
  • No need to set the transmitter's throttle switch
  • MOSFET transistor operation for maximum power output & the greatest efficiency
  • Factory installed radio, battery and motor connectors
&nbsp: P-FS-POD17TS P-FS-POD17T P-FS-POD12T P-FS-POD08T
Use CAR CAR CAR CAR
Operation Forward/neutral Forward/neutral Forward/neutral Forward/neutral
Brake/Reverse Brake/Reverse Brake/Reverse Brake/Reverse
ABS Yes Yes Yes Yes
Input LiPo NiCd/NiMH Only 2 Cells 2 Cells 2 Cells
Input NiCd/NiMH 6~7 Cells 6~7 Cells 6~7 Cells 6~7 Cells
B.E.C 5.0V / 1.0A 5.0V / 1.0A 5.0V / 1.0A 5.0V / 1.0A
Operating frequency 1.0KHz 1.0KHz 1.0KHz 1.0KHz
On-Resistance 0.006ohms 0.006 ohms 0.0035ohms 0.002ohms
Cut-off Voltage NiCd/NiMH 4.0V 4.0V 4.0V 4.0V
Cut-off Voltage Li-Po - 5.5V 5.5V 5.5V
Motor Turns Limit 17~36 Turns 17 Turns 12 Turns 8 Turns
Acceleration time delay - 0.06, 0.16, 0.27sec 0.09, 0.16, 0.27sec 0.03, 0.16, 0.27sec
Weight with wires 48g 33g 49g 63g
Case size 35x27x17mm 35x27x17mm 35x27x17mm 35x27x17mm
Temperature Cut-off Yes Yes Yes Yes
Fully Programmable Auto set-up Yes Yes Yes
Speed Up Function - Yes Yes Yes
Reverse Delay Function - Yes Yes Yes
