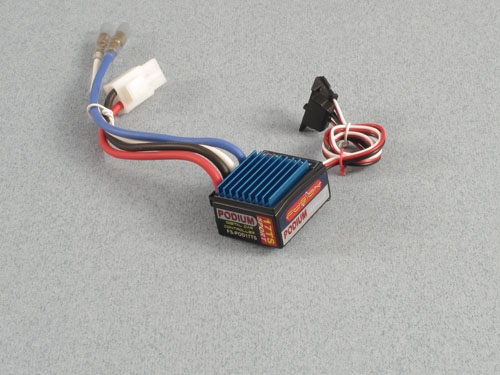

FUSION Podium ESC 17~36T Sport N6~7 FNBR
Stock code P-FS-POD17TSBrand FUSION
Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
£
27.50
Each
Currently unavailable - please contact us for an delivery date or an alternative.
Features (17TS Sport)
- This ESC is designed to be used with any 17~36 turn motor. A great upgrade from mechanical controls and perfect for sport applications
- Automatic set-up from the transmitter (Tx) for convenience
- Anti-Lock Brake System (ABS) enables greater control while cornering
- High frequency operation provides very smooth control, maximises battery run time and reduces operating temperatures
- Motor, battery and radio connectors pre-installed
- High temperature control automatically shuts down the ESC to prevent damamge from occuring during excessive current situations
-
 : P-FS-POD17TS P-FS-POD17T P-FS-POD12T P-FS-POD08T Use CAR CAR CAR CAR Operation Forward/neutral Forward/neutral Forward/neutral Forward/neutral Brake/Reverse Brake/Reverse Brake/Reverse Brake/Reverse ABS Yes Yes Yes Yes Input LiPo NiCd/NiMH Only 2 Cells 2 Cells 2 Cells Input NiCd/NiMH 6~7 Cells 6~7 Cells 6~7 Cells 6~7 Cells B.E.C 5.0V / 1.0A 5.0V / 1.0A 5.0V / 1.0A 5.0V / 1.0A Operating frequency 1.0KHz 1.0KHz 1.0KHz 1.0KHz On-Resistance 0.006ohms 0.006 ohms 0.0035ohms 0.002ohms Cut-off Voltage NiCd/NiMH 4.0V 4.0V 4.0V 4.0V Cut-off Voltage Li-Po - 5.5V 5.5V 5.5V Motor Turns Limit 17~36 Turns 17 Turns 12 Turns 8 Turns Acceleration time delay - 0.06, 0.16, 0.27sec 0.09, 0.16, 0.27sec 0.03, 0.16, 0.27sec Weight with wires 48g 33g 49g 63g Case size 35x27x17mm 35x27x17mm 35x27x17mm 35x27x17mm Temperature Cut-off Yes Yes Yes Yes Fully Programmable Auto set-up Yes Yes Yes Speed Up Function - Yes Yes Yes Reverse Delay Function - Yes Yes Yes
