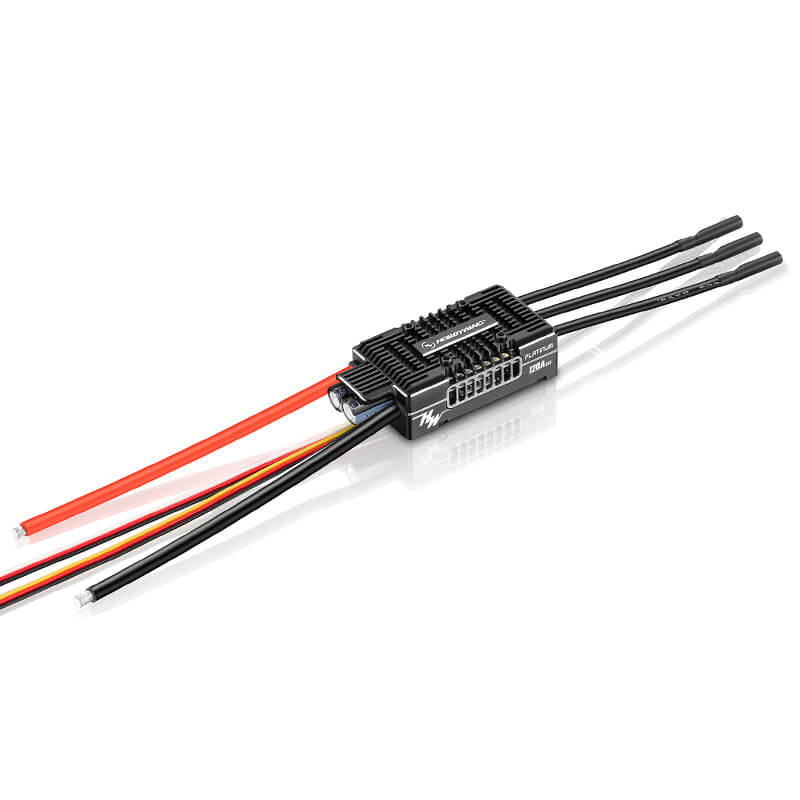

Hobbywing HOBBYWING PLATINUM 120A V5 SPEED CONTROL
Supplier stock
Usually dispatches in 1-2 working days. Click to enlarge
Hobbywing HOBBYWING PLATINUM 120A V5 SPEED CONTROL
Stock code HW30203402Brand Hobbywing
Supplier stock
Usually dispatches in 1-2 working days
£169.99EachUsually dispatches in 1-2 working days
- Brushed/Brushless: Brushless
- High Voltage/Regular: Regular
- Cont./Peak Current: 120A/150A
- Input Voltage: 3-8S Lipo
- BEC Output: Switch Mode:5-12V & Cont. 10A,Peak 30A
- Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
- Output Wires: Black-12AWG-100mm*3
- Input Connectors: No
- Output Connecotors: 4.0mm Gold Connectors (Female)
- ESC Programing via Transmitter: Not Support
- ESC Programing via LED Program Card: Not Support
- ESC Programing via LED Program Box: Not Support
- ESC Programing via LCD Program Box: Supported
- ESC Programing via OTA Programmer: Supported
- ESC Programing via Program Port: Separate Program Port
- Firmware Upgrade: Supported
- Telemetry Function: Mikado VBar;Futaba S.Bus2;etc.
- Size: 83.2*37.1*22.5mm (without fan)
- Weight: 150.4g(with wires, no fan)
- Application Scope: 420-520 class electric helicopter (main blade length 420-520mm) or fixed-wing
