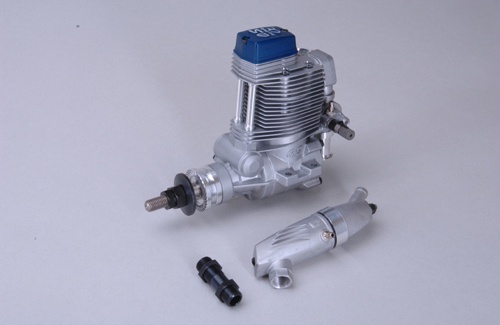

OS Engines O.S. FSa-81 w/F-5030 Silencer

OS Engines O.S. FSa-81 w/F-5030 Silencer

Stock code L-OS34810

Brand  OS Engines

  Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
£340.00Each

The new FSa-81 is a direct replacement for the FS-70 Surpass II, offering greater power and throttle precision in a compact and lightweight design. The crankcase mounting dimensions allow the FSa-81 to slot into the same mount that an FS -70S II would for an instant power upgrade.

Like the FSa-56, the crankcase breather system has now been incorporated inside the engine to negate the need for an external vent and the excess oil that eminates from it. A propeller locknut assembly is of course standard.

The new F-5030 silencer is very effective, thanks to it's internal baffle and carefully matched internal volumes and opassages. The design allows a huge range of outlet positions to accomodate almost every model. Even the distance away from the engine can now be adjusted.

The latest 60RA carburettor now features a 'constant velocity' inlet for improved throttle response and reduced spitting.

  • Mounts easily in the same space as the FS-70SII with no modifications.
  • A rubber on the muffler's multi-positional manifold helps prevent oil leakage.
  • The specially designed lubrication system eliminates the need for crankcase ventilation.
  • The 60RA carburetor is equipped with a venturi that reduces the chance of fuel leaking out onto the cowl, while also creating more positive air/fuel flow.
Specification
Propeller Range:13x7-9, 14x6-7
Silencer:F-5030
Weight:556g 19.63oz
Displacement:13.26cc 0.809 cu.in.
Bore:27.7mm 1.091in.
Stroke:22.0mm 0.866in.
Power Output:1.3PS @ 11,000
Practical RPM:2,200 – 12,000
