Futaba Battery Checker/Balancer-Universal

Futaba Battery Checker/Balancer-Universal

Stock code P-BR-3000

Brand  Futaba

Out of Stock
Currently unavailable - please contact us for an delivery date or an alternative.
£34.99

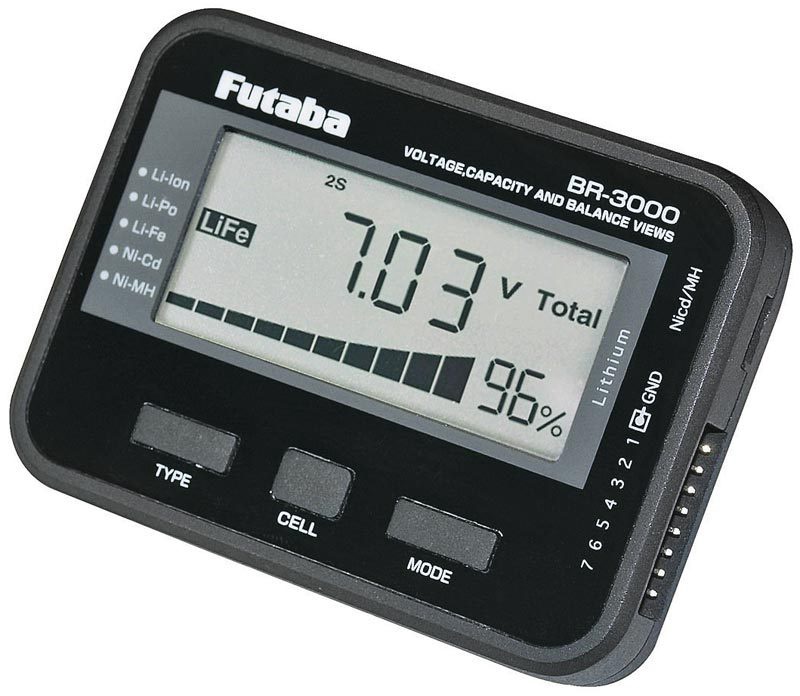

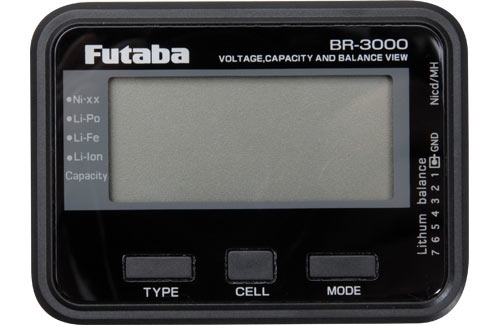

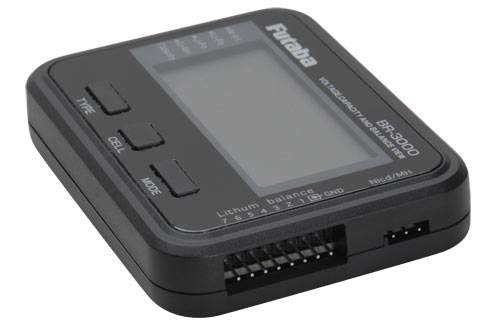

The new Futaba BR-3000 Battery Checker is a sophisticated unit that can be used to check a wide range of battery packs of varying voltages, with Li-Po, Li-Fe and Li-Ion packs of 2-7 cells, and Ni-MH and Ni-Cd packs of 4-7 cells all being suitable for checking with the BR-3000. Important information such as total pack voltage and remaining capacity are available for all packs, whilst those using Lithium technology can also be checked for individual cell voltage, minimum and maximum cell voltage and cell voltage differences, as well as being able to take advantage of the included balance function.

  • Quickly and clearly displays the voltage levels of your battery packs.

  • Total voltage and remaining capacity are shown on a bar graph and as a percentage.

  • Can check 2-7 cell LiFe, LiPo and Li-Ion packs, as well as 4-7 cell NiCd and NiMH packs.

  • Voltage of each cell of a lithium battery pack can also be displayed.

  • Operates on power supplied by the connected battery.

  • Know BEFORE you go just how much battery life you have!

Voltage Display Error:          +/- 1.5%
Dimensions:                        3.3 x 2.5 x 0.6 in (85 x 63 x 15 mm)
Weight:                              1.8 oz (52.6 g)
Total Voltage (Ni type):        4.0-17V
Total Voltage (Li type):        5-34V
Cell Voltage (Li type):          1.1-4.9V
Operating Temperature:      -10 to +45°C
Storage Temperature:          -20 to +60°C
