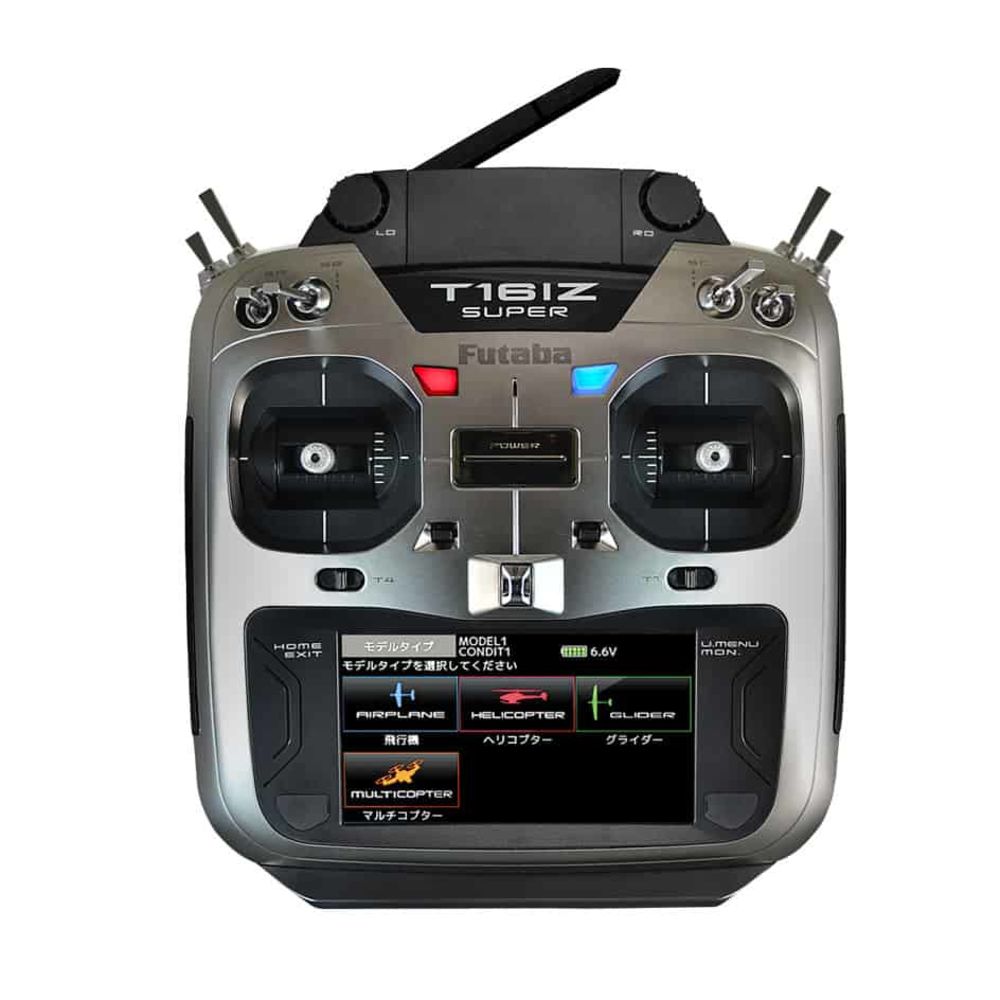

Futaba 16IZS 18-channel Air Radio Only Multi-Mode
Stock code FUT05003194-3Brand Futaba
Currently unavailable - please contact us for an delivery date or an alternative.
The 16IZ transmitter takes its styling cues from the top of the range 32MZ, with an attractive, comfortable and ergonomic design, whilst the large full colour touchscreen makes programming quick and intuitive. Incorporating Futaba's S-FHSS, T-FHSS and FASSTest transmission protocols, the 16IZ offers advanced aircraft, helicopter and glider programming, and includes a maximum of 8 flight conditions as well as Futaba's super precise telemetry system.
Supplied with 2 cell 2000mAh Li-Po Tx battery offering extended operating time, with integral USB charger, the feature packed 16IZ is perfect for both advanced and intermediate pilots, or even ambitious beginners!
- 16+2 Channels
- S-FHSS, T-FHSS and FASSTest Modulation
- 30 Model memories
- SD Card slot
- Full telemetry
- Full colour touchscreen
- High-capacity Li-Po Tx battery
- USB Port
- S-Bus connection w/power
- Maximum 8 flight conditions
- Aircraft, Helicopter and glider programs
- Voice
- Data logging
- Maximum 18ch (16 + 2ch)
- Telemetry data voice reading function
- Earphone jack
- Speaker
- Touch panel for setting + 2 push switches
- 2.4GHz FASSTest, S-FHSS, T-FHSS system compatible
- Telemetry function compatible (valid in FASSTest and T-FHSS mode)
- 30 model memory
- Wide viewing angle 4.3 inch colour LCD
- S.BUS servo programming function
- Servo monitor
- Japanese / English, some other 7 languages
- Monitor LED
- Left and right slide lever
- Digital trim
- microSD card slot (card sold separately)
- USB connector for simulator connection
- Lithium polymer battery LT2F2000B (2,000mAh) for USB charging
- Model menu (aeroplane / heli / glider / multicopter)
- Trainer
- User name / model name (15 characters)
- Stick alarm
- Sub trim
- Reverse
- Fail safe
- End point (ATV)
- Servo delay
- Up / down timer
- AUX function name change
- Data reset
- 8 condition selection
- AFR (D / R)
- Program mixing
- Up / down timer
- Telemetry log function
- Stick mode switchable
Common to Aeroplanes / Gliders:
- Aileron differential
- Flap setting
- Aileron camber Flap
- Aileron Brake flap
- Aileron Ladder
- Air brake Elevator
- Camber mixing
- Elevator Camber flap
- Camber flap Elevator
- Ladder Aileron
- Gyro sensitivity
- V tail
- Elbeta
- Winglet
- Motor
For aeroplanes:
- Throttle cut
- Idle down
- Ladder Elevator
- Snap roll
- Air brake
Glider only:
- Butterfly
- Trim mix
- Acceleration (elevator / elevator camber flap / aileron rudder)
Helicopter only:
- Throttle cut
- Idle down
- Swash setting
- Swash ring
- Pitch curve
- Throttle curve
- Throttle limiter
- Acceleration
- Throttle hold
- Swash mixing
- Throttle mixing
- Pitch Needle
- Pitch Ladder
- Governor sensitivity (CGY750) (Compatible with 3-axis gyro for helicopter)
- Governor setting
- Gyro programming
