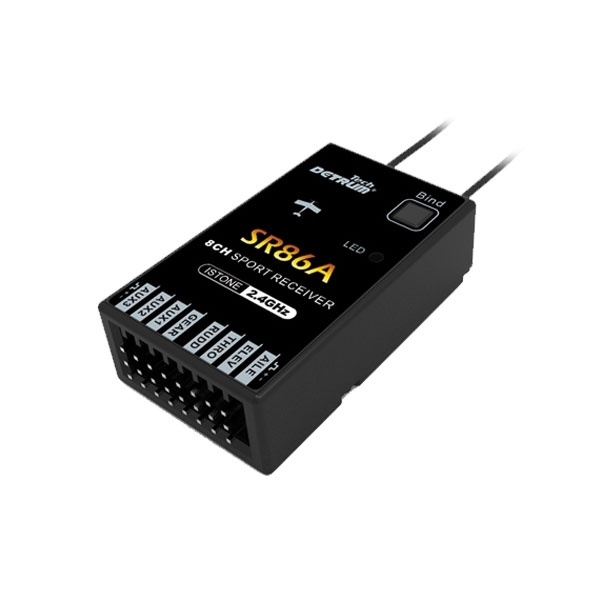

Dynam DYNAM DETRUM SR86A 8CH 2.4G RECEIVER w/ISTONE STABILZER (w/ABS)
Stock code DTM-R003Brand Dynam
Currently unavailable - please contact us for an delivery date or an alternative.
Main Control IC
32-bit high-performance ARM core processor, 6-axis MEMS gyro
chipset
Control Algorithm
Original airplane attitude stabilization algorithm and control
algorithm. Support normal wing, fly wing, V-tail airplanes, and 3D
planes.
Flight Mode
Four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery
(Auto Balance). You can switch between different modesby the toggle
switch.
Adjusting the Gain
Set the gain and other programmable items with matched
transmitter.
High Sensitivity
SR86A adopts 2.4GHz direct sequence spread spectrum (DSSS) and
multiple frequency-hopping (FHSS) technologies, having high
receiving sensitivity and strong anti-interference
capability.
Diversity Antenna
By using diversity antenna, combined with the signal detection and
switching algorithm, the receiving signal is stable and
reliable.
Unique ID Code
Once the binding is made, the ID code is stored in the receiver and
no further bindingis necessary after restarting the receiver.
Fail Safe
If the aircraft flies out of the remote control range and cannot
receive a valid RF signal from the transmitter, SR86A's outputs can
be driven to their preset failsafe positions.
Spec Check:
- Channels: 8-channel
- Sensor: 6-axis gyro
- Sensitivity: -97dBm
- Output: PWM (71Hz)
- Transmission Range: More than 1,000 meters on the ground, more than 1,600 meters in the air
- Input Voltage: 3.6V ~ 16V
- Size: 51mmx28.4mmx14.5mm
- Weight: 15g
