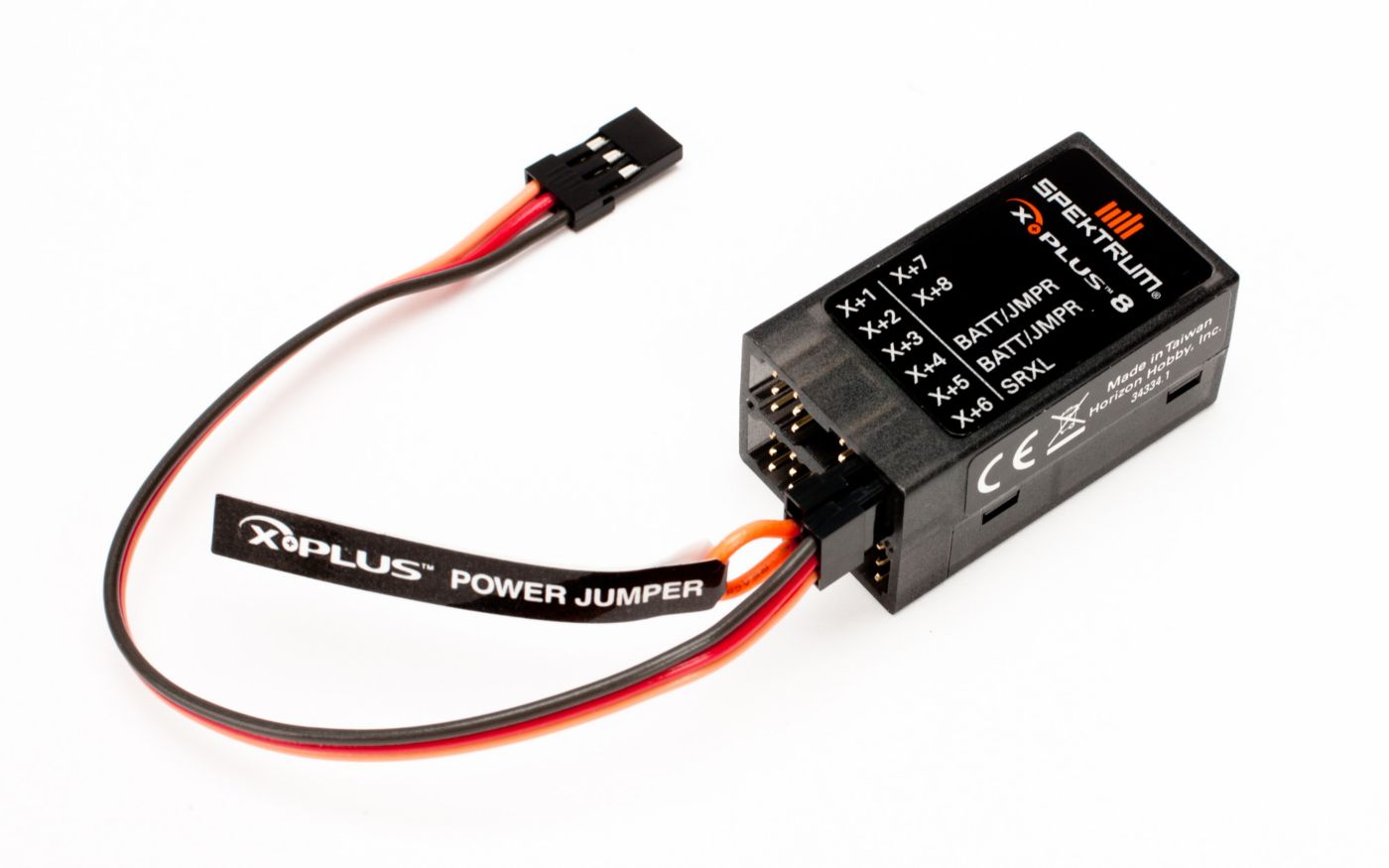

SPM X-Plus8 Expansion Module
SPM X-Plus8 Expansion Module
Stock code P-SPMXP8000Brand SPM
Usually dispatches in 1-2 working days
Key Features
- 8-channel expansion
- Dual battery ports
- Included Jumper offers option of using receiver power
- Allows fine tuning of 8 servos on non-critical controls (bomb drops, lights, winches, gear, etc.)
Overview
The X-Plus 8 module is designed to allow expansion of up to 8
servos for non-control surface functions such as bomb drops,
lights, winches, retractable landing gear, and many more. The
X-Plus 8 is compatible with Spektrum&trade: X-Plus transmitters
and receivers. The X-Plus 8 module offers the option to power the
connected servos via dual auxiliary battery ports with separate
batteries and switch harnesses (sold separately) independent of the
receiver. The X-Plus 8 module can also be powered inclusive of the
receiver by using the included jumper through either of the dual
BATT/JMPR ports.
Applications
Scale modelers with complex
aircraft, ships, or surface applications will enjoy the easy
programming and functions of the X-Plus 8 module using X-Plus
compatible transmitters AirWare&trade: software. Modelers will
be able to select 2 position, 3 position or potentiometer
adjustment through their X-Plus transmitter. After selecting the
specific switch or port, AirWare software will allow the individual
servo adjustment of each X-Plus channel&lsquo:s travel adjust,
sub trim, reversing, and speed.
