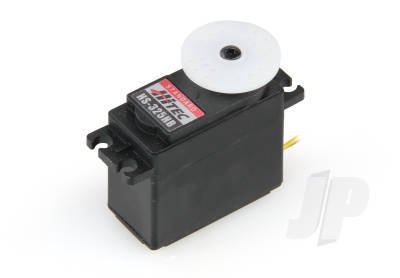

Hitec HS325HB Standard Servo HD Gears With Top BB
Supplier stock
Usually dispatches in 1-2 working days.Hitec HS325HB Standard Servo HD Gears With Top BB
Stock code 2213230Brand Hitec
Usually dispatches in 1-2 working days
The HS-325HB Standard Heavy Duty Servo features a ball bearing output shaft for long life and positive centering. Hitec's HS-325HB is offered with Karbonite ™ gears, that after hundreds of thousands of cycles won't show any signs of wear. With 49 oz./in. of torque at 6 Volts, the HS-325HB is a great choice for Sport pilots all over the World!
Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.
Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
- Motor Type - 3 Pole
- Bearing Type - Top Ball Bearing
- Speed (4.8V/6.0V) - 0.19 / 0.15 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 3.0 / 3.7

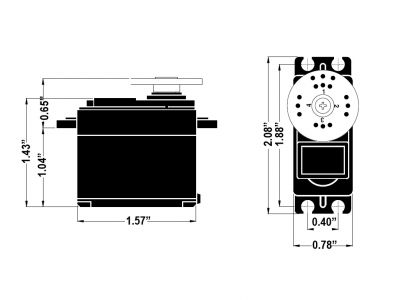

- Size in Millimetres - 39.88 x 19.81 x 36.32
- Weight grams - 42.81
- Gears - Karbonite
