PRODUCT INFO:

DETAILS:

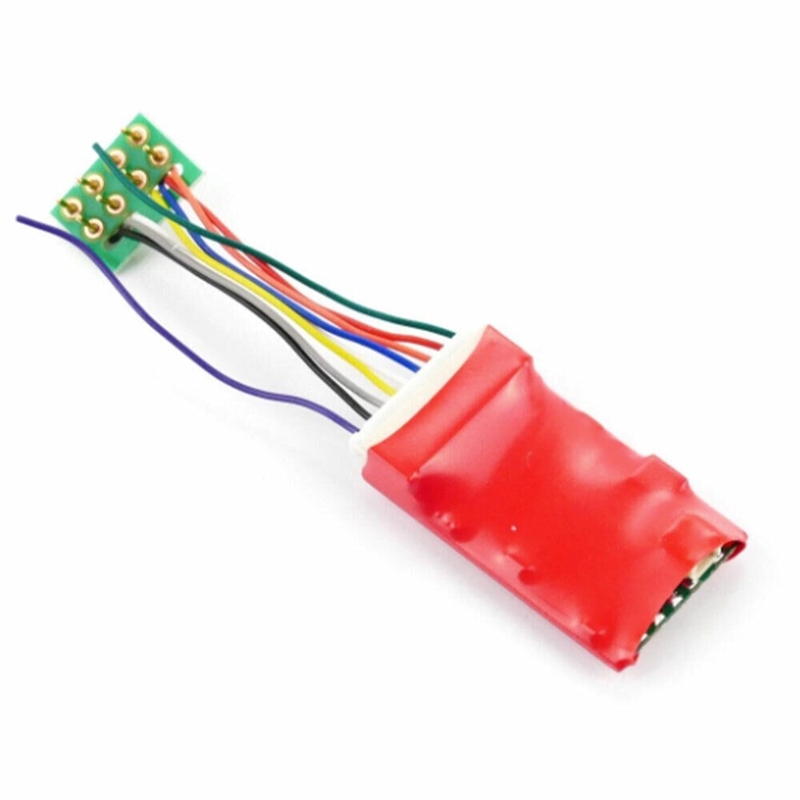

The DCC90 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold separately), This helps keep the locomotive moving in dirty or dead track sections.

FEATURES:

2 Digit and 4 Digit Addressing
14, 28 or 128 Speed Steps
Smooth Operation
Constant Brightness Lighting
Direct Mode Programming
Motor Isolation Protection
Advanced Consisting
Socket to Add PowerPal

Technical Specifications:

NO. OF PINS 8
NO. OF FUNCTIONS 2
SPEED STEPS 14, 28 or 128
CURRENT RATING 0.5A
MOTOR CURRENT RATING 1.5A - 2.0A Max

MEASUREMENTS:

LENGTH 27mm
WIDTH 17mm
THICKNESS 7mm
HARNESS LENGTH 25mm
