Tamiya Electric Actuator Set 1/14 Scale Tipper Truck 56545
Stock code 56545Brand Tamiya
Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
£
385.00
Each
Currently unavailable - please contact us for an delivery date or an alternative.

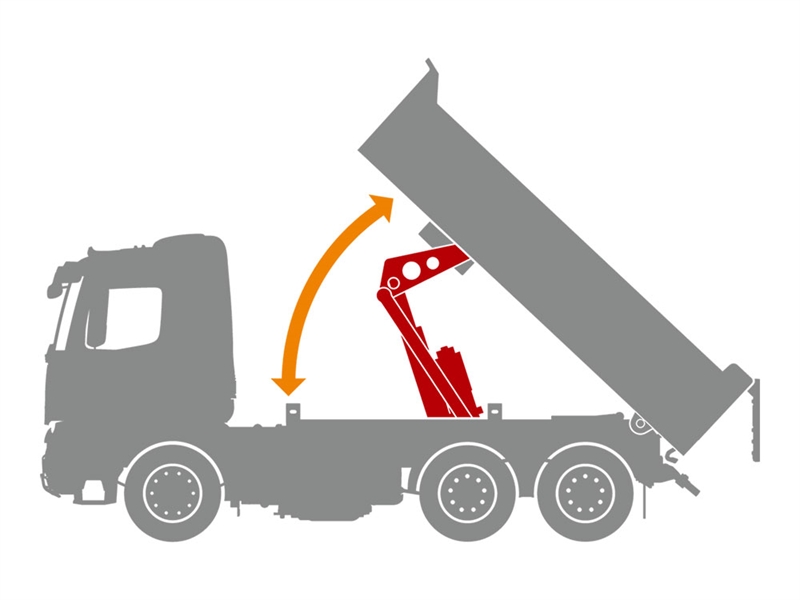

This actuator set is designed to complement the Mercedes-Benz Arocs 3348 Dump Truck. When using a 4-channel transmitter, the dump feature of the trucks bed can be fully controlled to tip and raise the dump bed allowing its contents to flow out of the one way gate on the back.

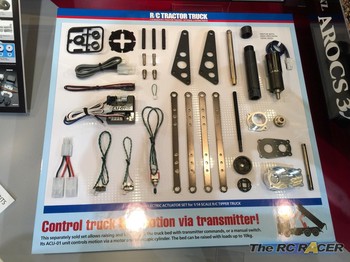

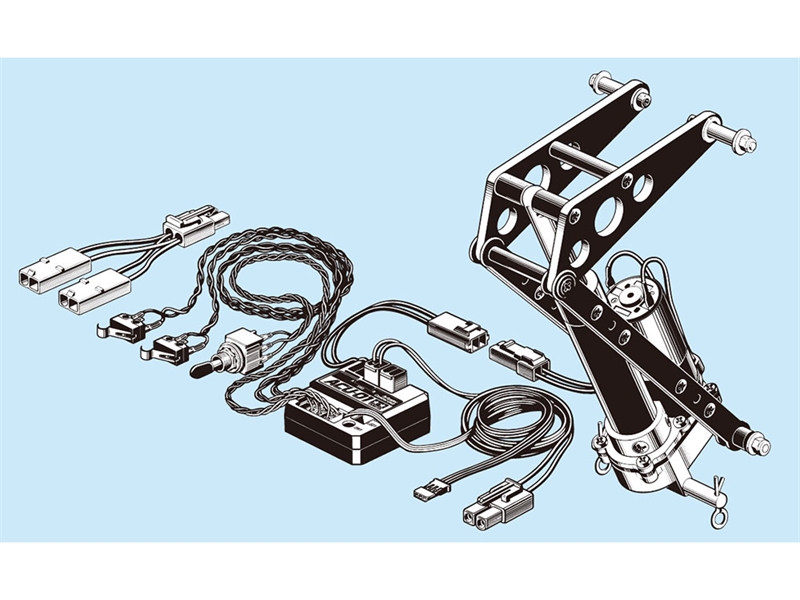

This kit contains the following items:
- The ACU-01 Unit is a compact actuator unit for Tamiya R/C tipper/dump truck beds.

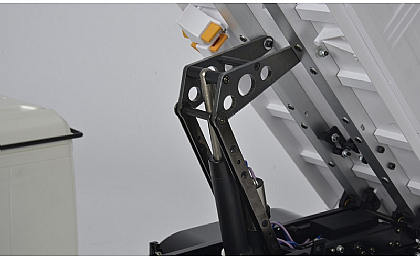

- The included geared motor (gear ratio = 64:1, size = Type 280) raises and lowers the truck bed via command from the ACU-01 unit, from a transmitter or the manual included switch.
- Limit switches ensure that the truck bed does not move beyond the defined range.
- Recommended for use with Tamiya 4ch Attack 2.4Ghz radio. Item 7255252
- Note: This product cannot be used together with Motorized Support Legs (Item 56505), as it uses the same R/C channel.
- This model can be used with standard ESCs, or the MFC-01 (Item 56511) and MFC-03 (Item 56523) multi- function control units.
- Compatible with 1/14 scale R/C tipper/dump truck models.
Actuator Set Specification
| Model Type: | Acessory |
| Construction Type: | Kit |
| Designed to Fit: | Tamiya Arocs - 56357 |
| Load Capacity: | 10Kg |
| Transmitter Compatability: | Requires seperately sold 4ch transmitter and receiver |
