The Hot Hatch is back - 58714 Tamiya Volkswagen Golf GTI MkII 16V Rally MF-01X now available for pre-order!

The Hot Hatch is back - 58714 Tamiya Volkswagen Golf GTI MkII 16V Rally MF-01X now available for pre-order!
Click to enlarge

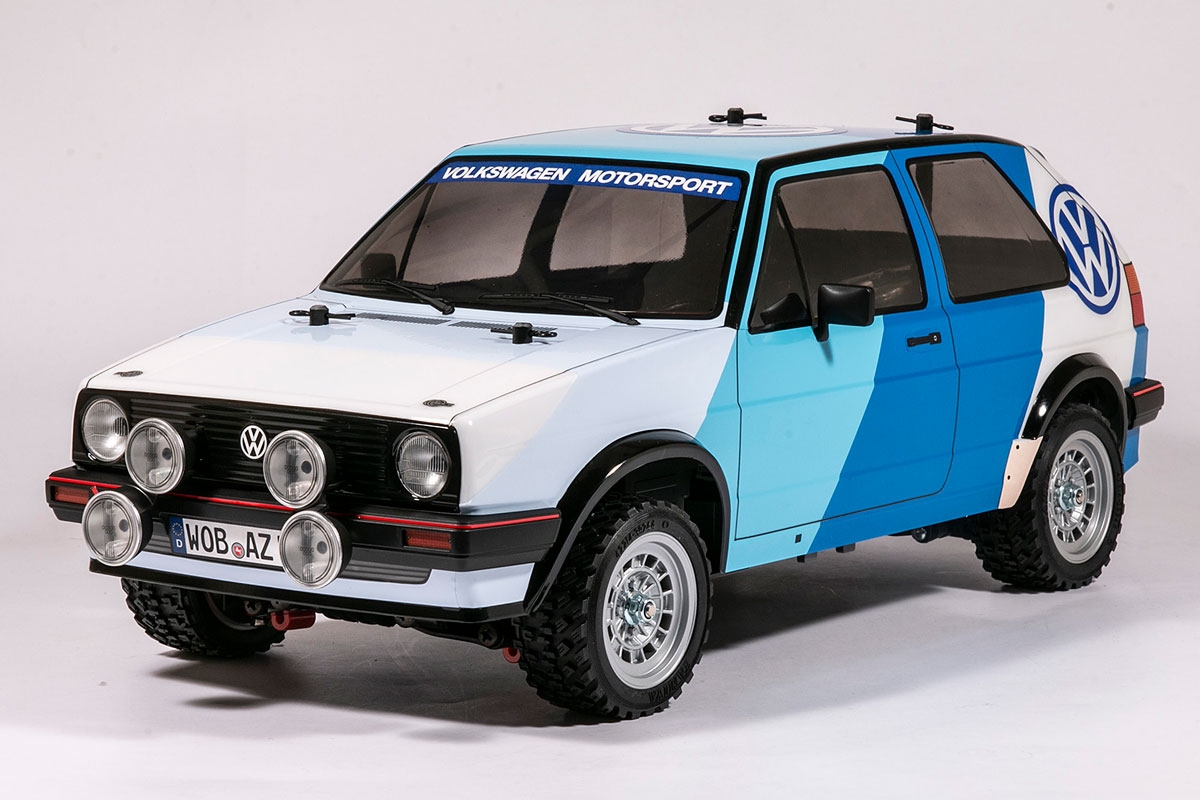

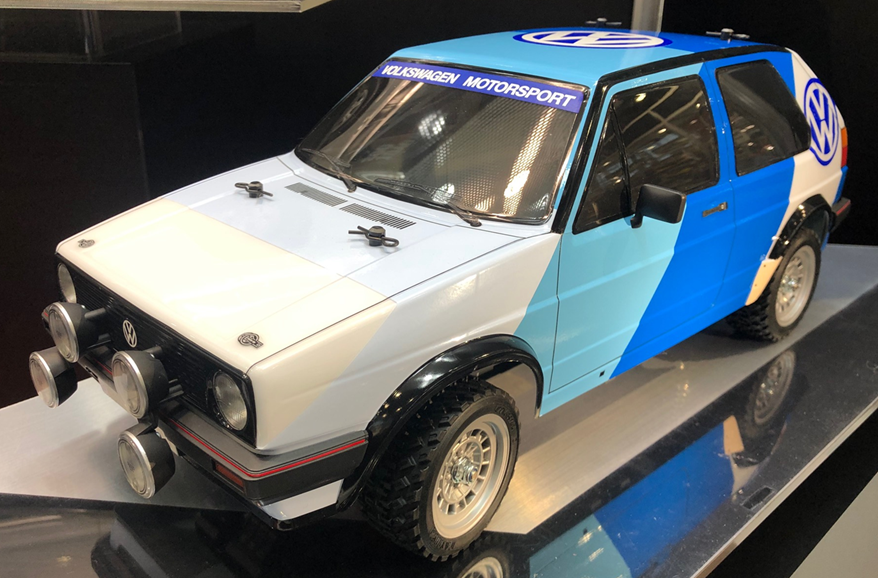

Get ready to dive back into the 80s with this classic Volkswagen hot hatch - The  Golf GTI MkII 16V RALLY MF-01X is on its way.

Now available to pre-order from our website here , likely to arrive around August/September 2023.

Or explore the rest of our authentically detailed Tamiya range , electric cars , kits , or kit bundles here.

Read on for a more detailed description of this brand new Tamiya kit.

The MkI Golf took the market by storm when it hit showrooms in 1976, but it's the later MkII which set the standard for what was to come. Although bulkier than its predecessor, it came to be known as the ‘grown up’ hot hatchback - more powerful and sophisticated with its the feisty 1.8-litre engine, yet still offering a fun drive in a s porty yet understated body.


This 1/10 scale high quality Tamiya Golf GTI MKII rally car kit (58714) comes with lightweight polycarbonate body, authentic stickers, separately moulded plastic light cases, bumper, and side mirrors AND includes 540 Torque Tuned motor and ESC. Its  release marks a return to the hot hatch madness of the 1980s, during which time the iconic Volkswagen Golf became a clear favourite. It has been faithfully recreated as the champion of the A7 class competition 1986 global rally race, a model which was powered by a 1,781cc inline 4-cylinder 4-stroke gasoline engine capable of 195hp.

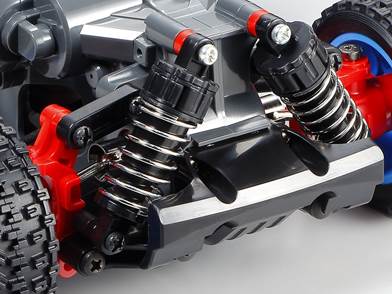

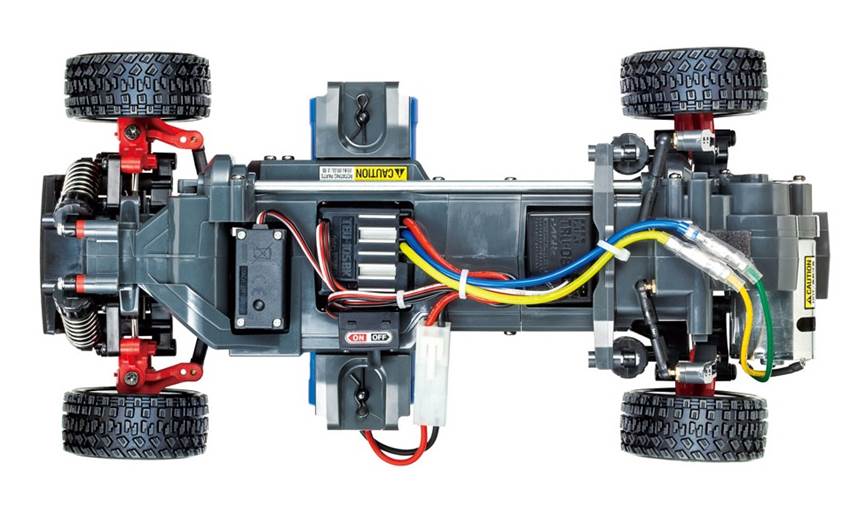

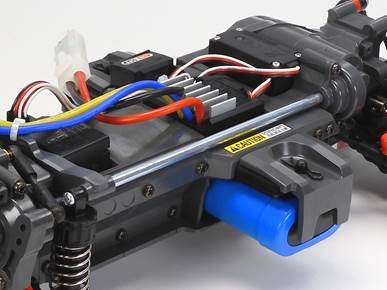

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD  MF-01X c hassis gives a thrilling drive whether you take it on road or flat dirt surfaces,  thank s to friction dampers employed by the  4-wheel independent double wishbone suspension. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears and the battery pack location in the chassis centre ensures outstanding balance. Measuring 397mm in length, 170mm wide and 142mm high, this model has an L-size wheelbase of 239mm.

With Polycarbonate light cases fully compatible with separately sold 5mm LEDs, now you can achieve an extra level of authenticity and light up the rally track in more ways than one.

All you need to get this stunning recreation up and running is a 2-channel radio, steering servo, 7.2 volt battery with compatible charger and Tamiya PS paint .

Looking to lay waste to your competitors? Don't worry - we should soon have a host of Hop-Up Option parts available to tune the MF-01X chassis for maximum FUN.

Click here  to pre-order yours now.

Find the full parts list for this model below (all of which are almost interchangeable with 58687 - 1/10 R/C Ford Escort Mk.II Rally, which shares the same MF-01X chassis):

Item No: Description:
19000815 F Parts
10115065 P Parts
16295014 Sponge Sheet (20x100mm)
10555015 1150 Plastic Bearing (BA13 x10)
12300010 9mm Washer (BA10 x1)
13550027 5x40mm Shaft (BA14 x1)
19805622 1150 Metal Bearing (BA12 x2)
19804392 3x10mm Tapping Screw (Black) (BA6 x10)
19805895 3x20mm Screw (BA1 x10)
19805574 3x18mm Screw (BA2 x2)
13555048 5x21mm Shaft (BA15 x1)
19804159 3x10mm Screw (BA3 x10)
19804394 2.6x10mm Binding Screw (BA4 x5)
12500029 3x32mm Threaded Shaft (BA16 x1)
19805629 3x12mm Tapping Screw (BA5 x4)
10555020 850 Plastic Bearing (BB1 x10)
13550008 5x30mm Shaft (BB2 x1)
19805826 Coil Spring (BC9 x2)
19804237 Gearbox Joint (BC6 x2)
19805976 3x46mm Screw Pin (BC2 x4)
19805756 3x32mm Screw Pin (BC3 x4)
19805503 Drive Shaft (BC8 x2)
12500024 3x18mm Threaded Shaft (BC4 x1)
16294011 Sponge Tape (15x150mm)
19804163 3x27mm Screw (BD1 x10)
19805945 3x18mm Step Tapping Screw (BC1 x2)
19805557 4mm Flange Lock Nut (BD4 x4)
14305306 Motor Mount Plate (BD8)
14305125 Motor Plate (BD7)
13485216 M Wheelbase Propeller Shaft
16095010 Antenna Pipe (30cm) (Black)
11053993 Chassis Instructions
50038 Tool Set (Box Wrench, 1.5mm, 2.5mm Hex Wrench, BD3 x4)
50171 Heat Resistant Double-Sided Tape (x5)
50354 16T, 17T Pinion Gear (BD6, etc.)
50573 2x8mm Tapping Screw (BA8 x10)
50575 2.6x10mm Tapping Screw (BA7 x5)
50576 3mm Grub Screw (BD3 x10)
50582 3x14mm Step Tapping Screw (BD2 x5)
50586 3mm Washer (BA11 x15)
50592 5mm Ball Connector (BA9 x10)
50594 2x10mm Shaft (BB3 x10)
50595 Nylon Band w/Metal Hook (x10)
50738 G Parts (GB1-4)
50823 Wheel Axle (BC7 x2)
50875 5mm Adjuster (BA17 x8)
50882 King Pin (BD5 x4)
51008 Bevel Gear Set (BA18 x1, BA19 x2, BA20 x3)
51391 C Parts (x2)
51537 6mm Snap Pin (BD9 x15)
51576 A Parts
51577 B Parts
54358 RS-540 Torque-Tuned Motor
84195 3mm O-Ring (Black) (BC5 x10)
87099 Cera-Grease HG
45057 TBLE-02S Electronic Speed Controller
19006907 H Parts
19115527 J Parts
19005859 LED Stopper (x2)
19808058 2x6mm Tapping Screw (x10)
19490024 Stickers, Masking Stickers
11056976 Body Set Instructions
50025 Double-Sided Tape (x5)
50197 Snap Pin (Small x5, Large x10)
50573 2x8mm Tapping Screw (x10)
50577 3x10mm Tapping Screw (x10)
51537 6mm Snap Pin (x15)
10309 2mm Washer (Small) (x20)
84195 3mm O-Ring (Black) (x10)
