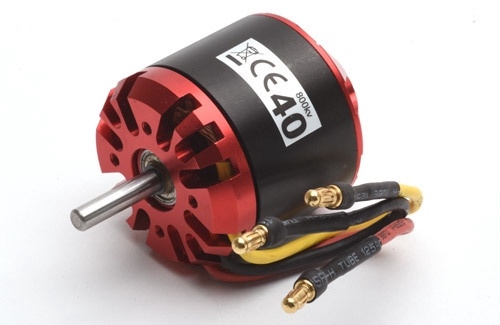

Ripmax Quantum II 40 - Brushless Motor
Stock code M-Q2-40Brand Ripmax
Available for same day despatch Mon–Fri if ordered before 2pm, when possible

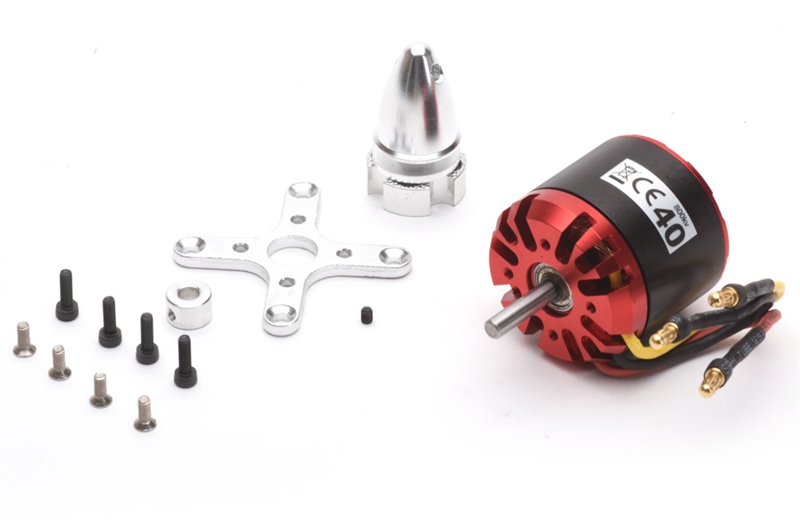

The range of Ripmax Quantum II electric motors are designed to offer performance, efficiency, great build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.
This .40 size motor is designed as an equivalent to a .40/46 2-stroke glow IC motor and is suited to a wide variety of sports and scale models. For a .40 use 4 cells and for .46 use 5 cells
.40 2-Stroke Equivalent Setup:
• 4S 4500mAh Li-Po
• 60A Brushless ESC
• 12x9W" Propeller
| Specifications | |
| Connectors | 4mm Bullet |
| Length | 50mm |
| Weight | 210g |
| Max. Continuous Current (Amps) | 60A |
| Diameter | 42.5mm |
| KV RPM | 800 |
| Thread | M8 |
| LiPo | 3 - 7 Cells |
| Speed Controller | 60A Brushless (Req'd) |
| Shaft dia | 5mm |
