Lesu 1/16 Aoue AT60H Articulating Dump Truck Kit

Lesu 1/16 Aoue AT60H Articulating Dump Truck Kit

Stock code RD-A0004

Brand  Lesu

  Special Order - we will confirm delivery timeframe

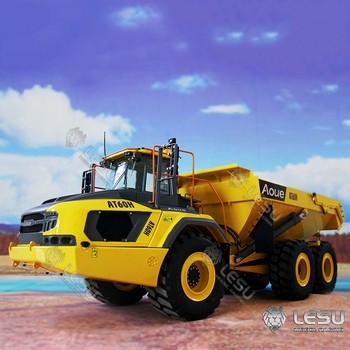

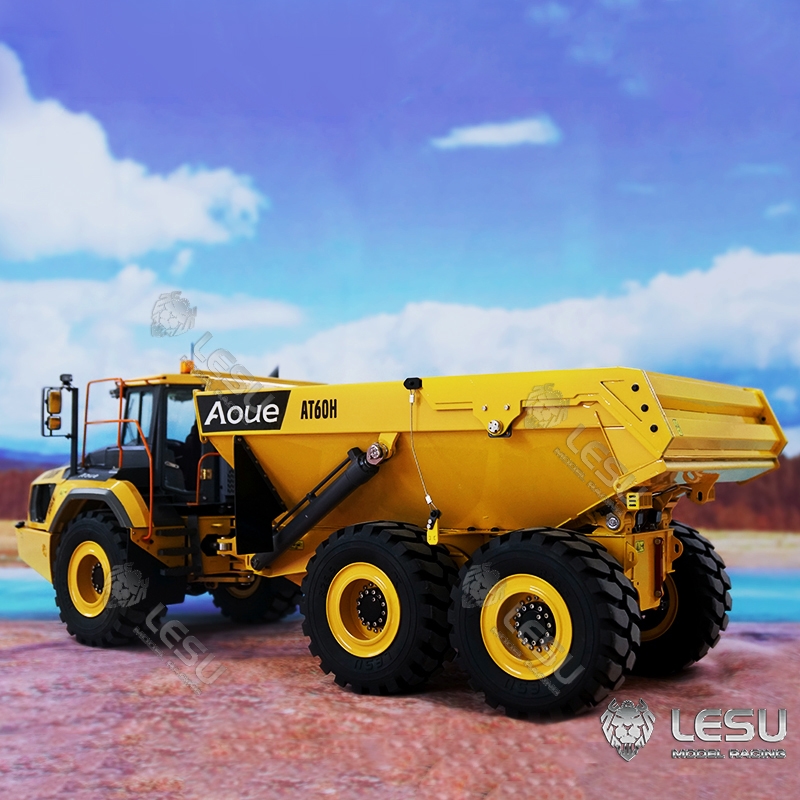

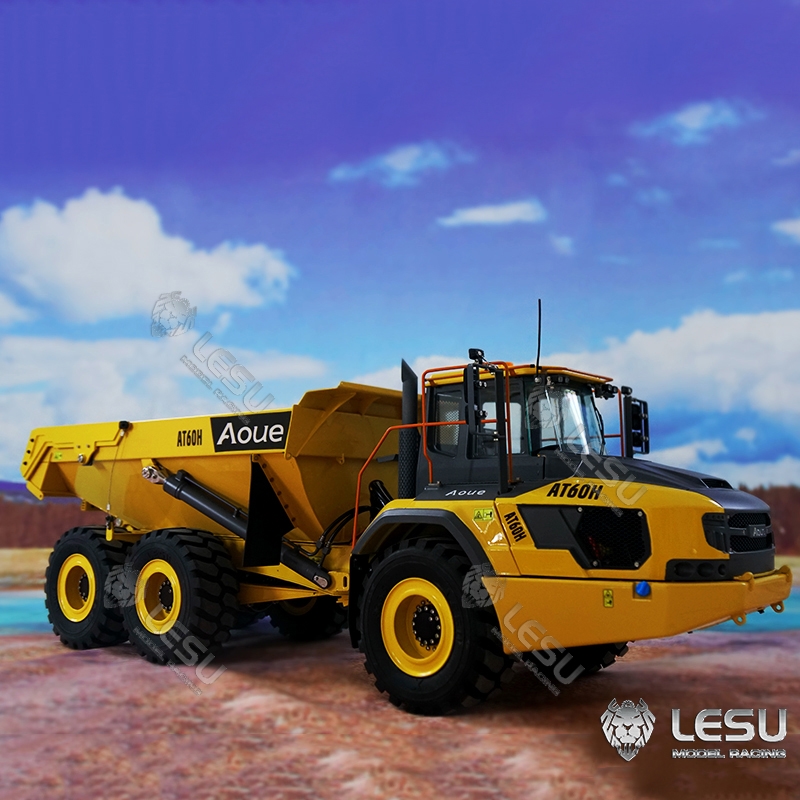

A 1/16 scale radio controlled 6x6 articulating dump truck kit. Almost entirely made of metal. Comes with motor and speed controller, 2 speed gearbox with shift servo, axles with locking diffs, diff lock servos, hydraulic pump with motor and speed controller, and valve block with servos.

Model weight is 12.6kg, length 665mm, width 201mm, height 221mm (top of cab), 440mm (top of skip in raised position).

The truck uses a 1:14 planetary two-speed high torque gearbox, 6X6 full-drive wheel-side reduction axle with differential lock. The powerful drivetrain allows good traction off road.

The model uses hydraulic steering. The steering angle is ±40 degrees. The steering setup allows for strong and precise steering angle without losing flexibility.

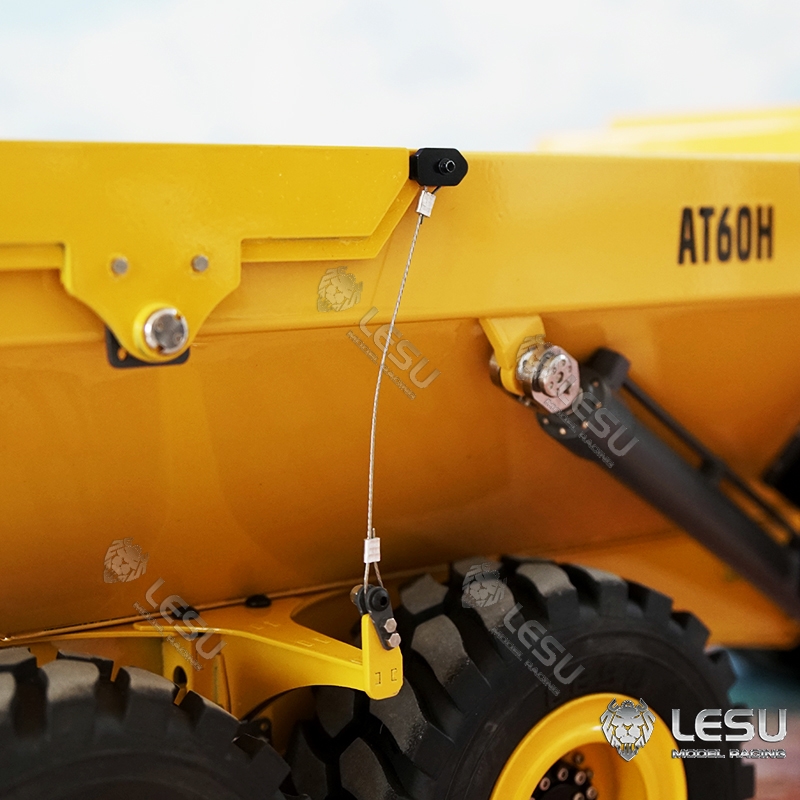

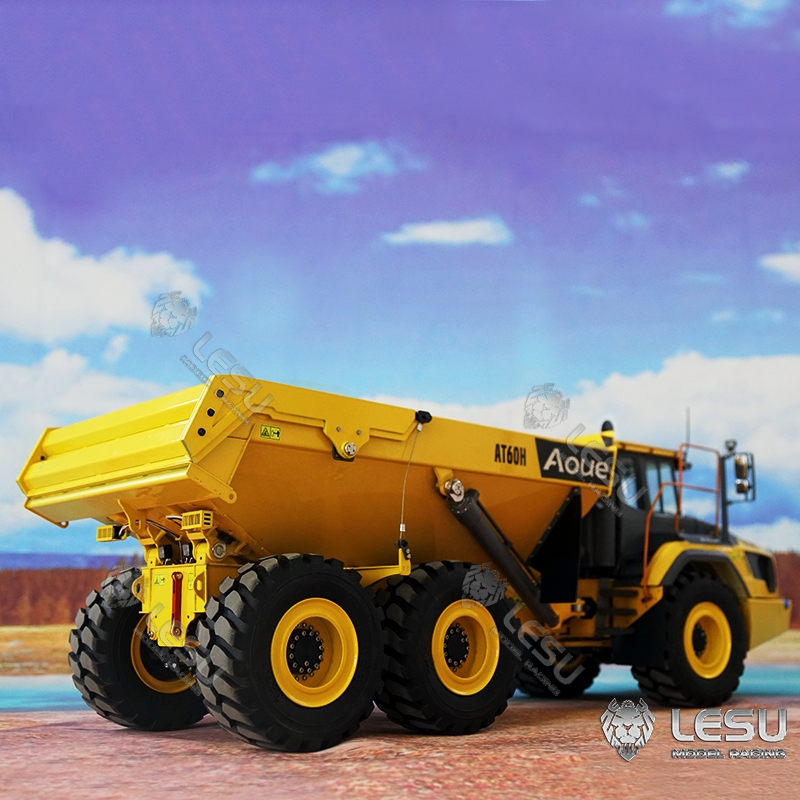

The hydraulic lifting and lowering body has a lifting angle of 55 degrees. With steering and body safety lock pins.

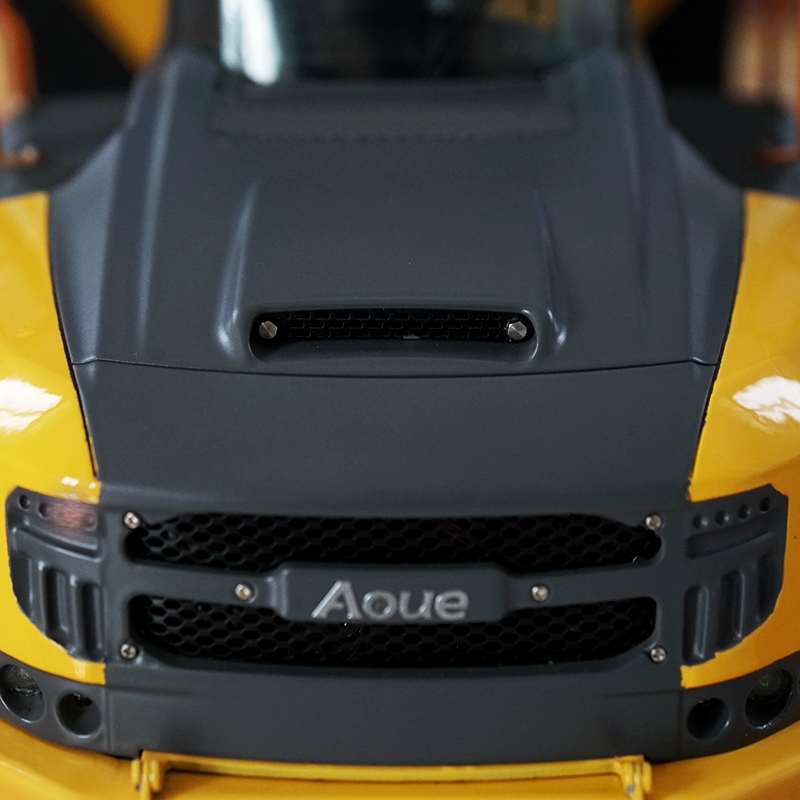

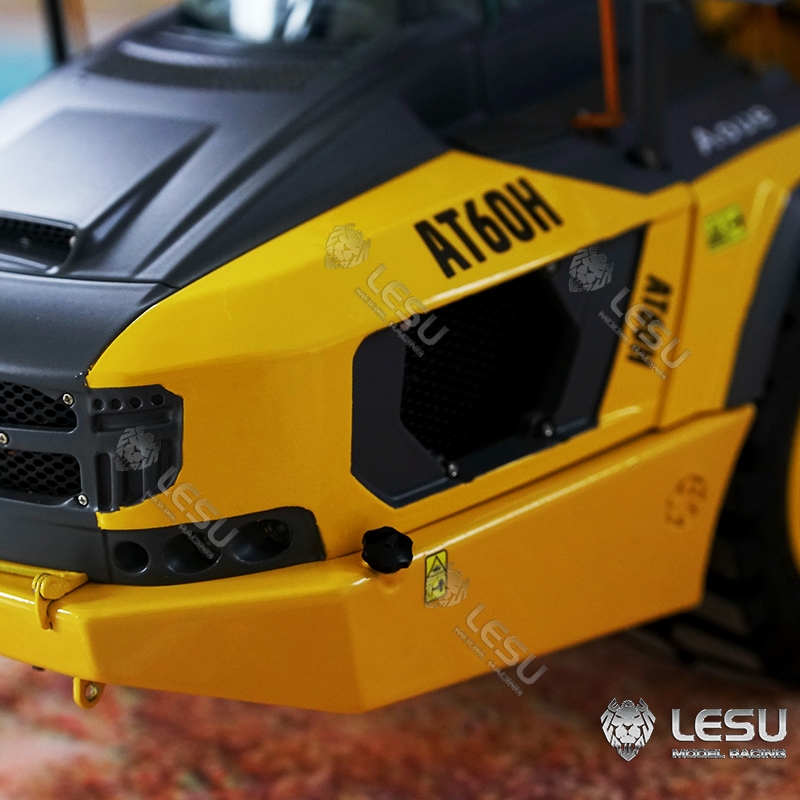

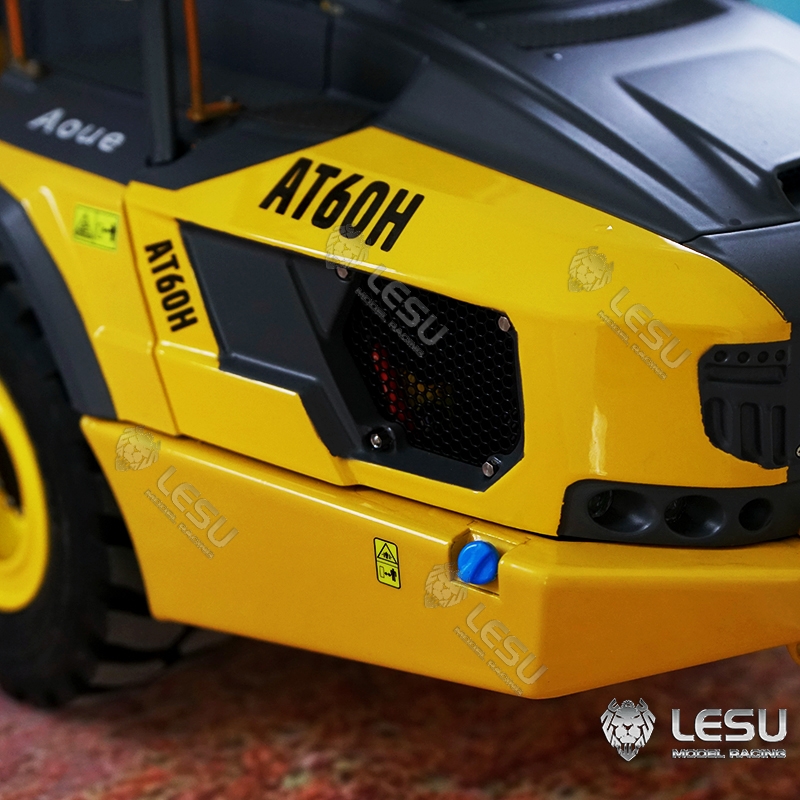

The car shell adopts all-metal CNC processing technology. Full metal chassis. The metal parts are sandblasted after assembly which leaves a keyed surface which is ideal for painting.

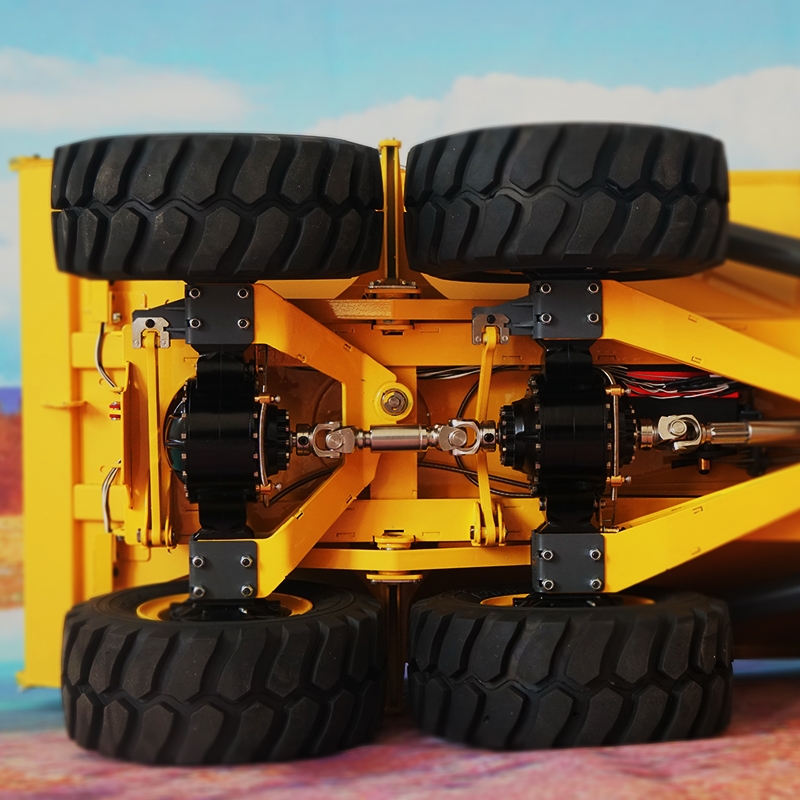

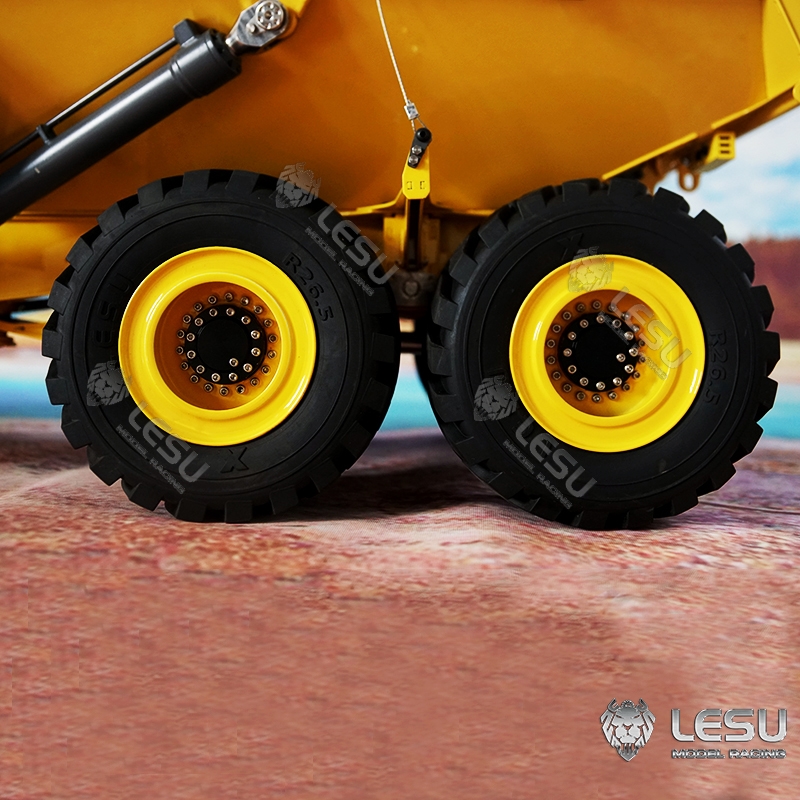

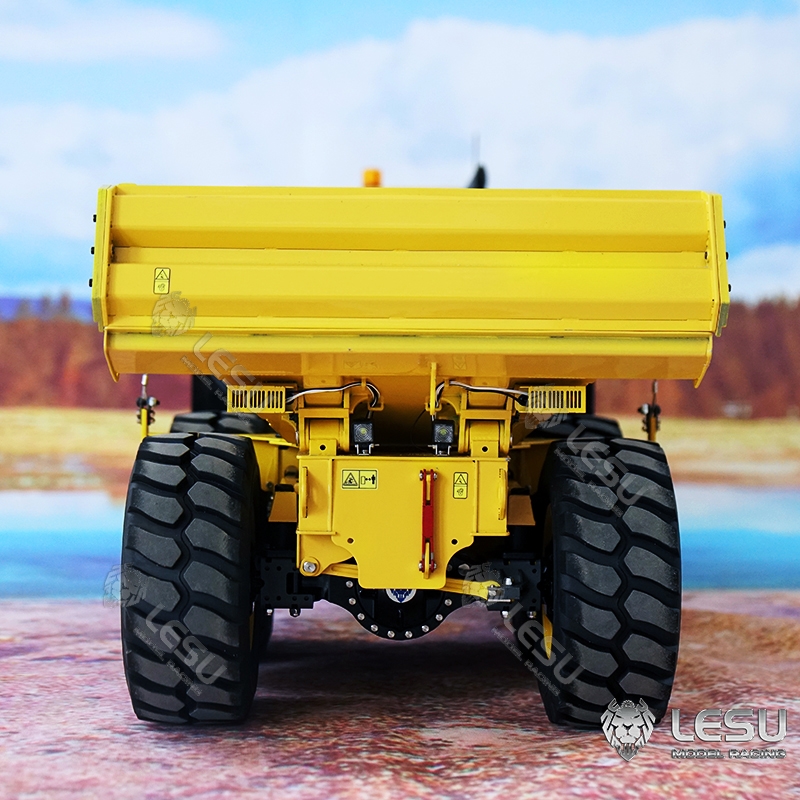

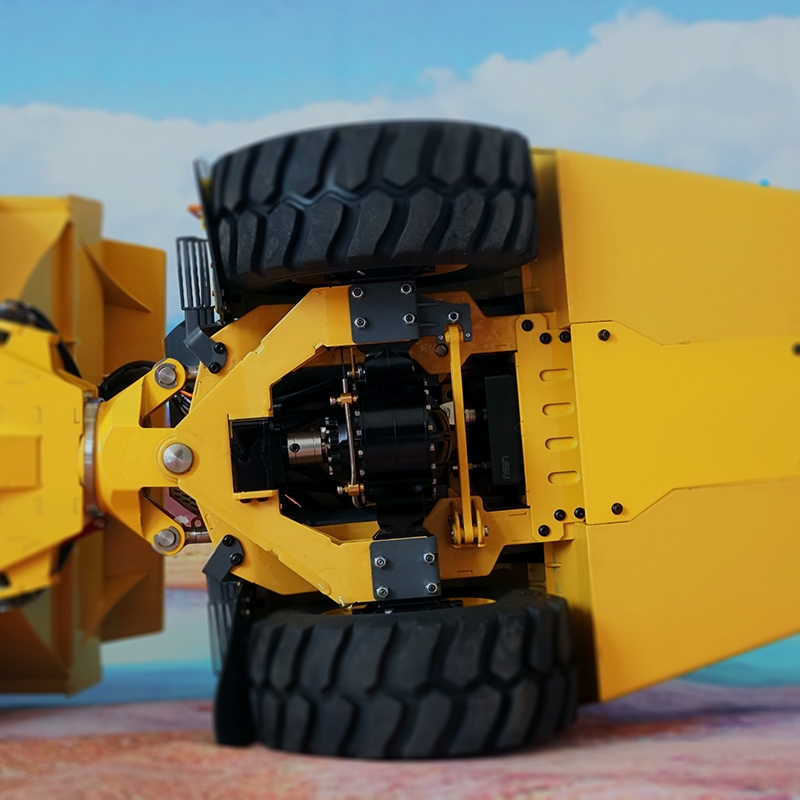

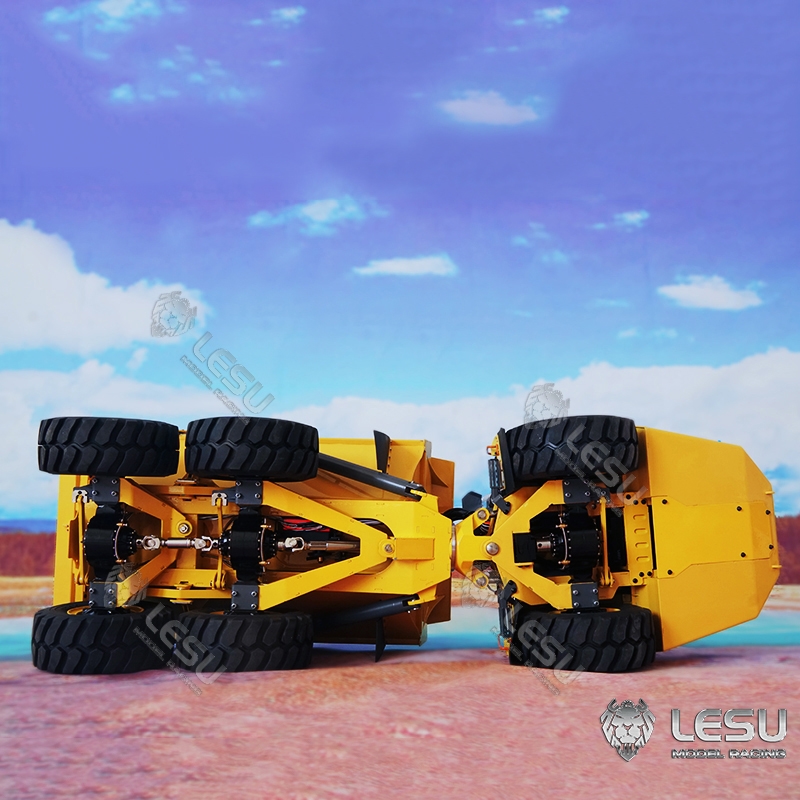

The front suspension adopts independent suspension with stabilizer bar. The rear suspension adopts a straddle mounted bogie beam. Independent wheel movement via a 3-point mounting system. (Straddle mounted bogie beam. Independent wheel movement via a three-point mounting system). The suspension greatly increases the model's off-road capability.

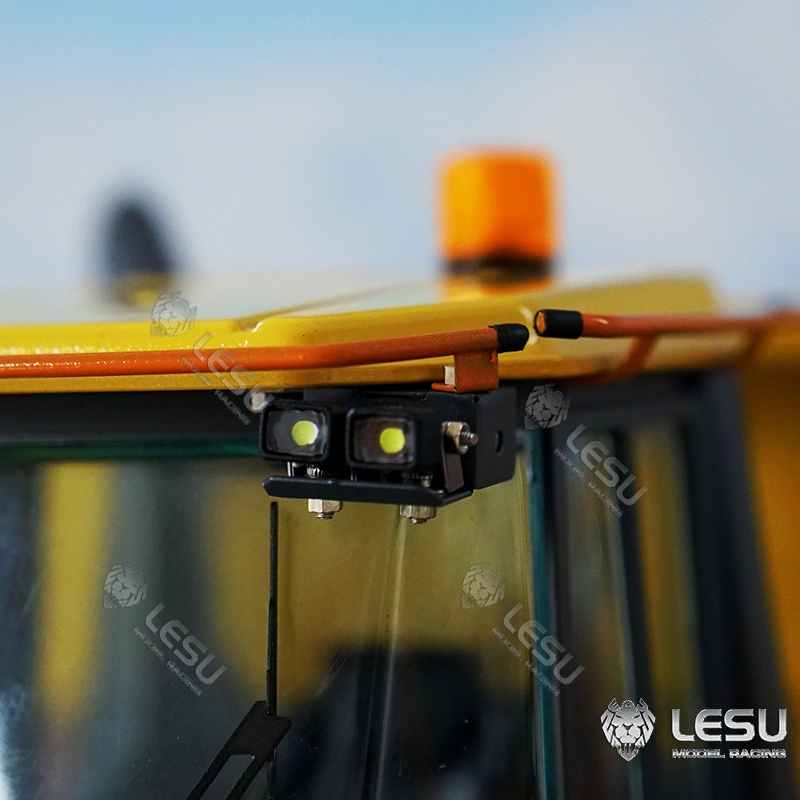

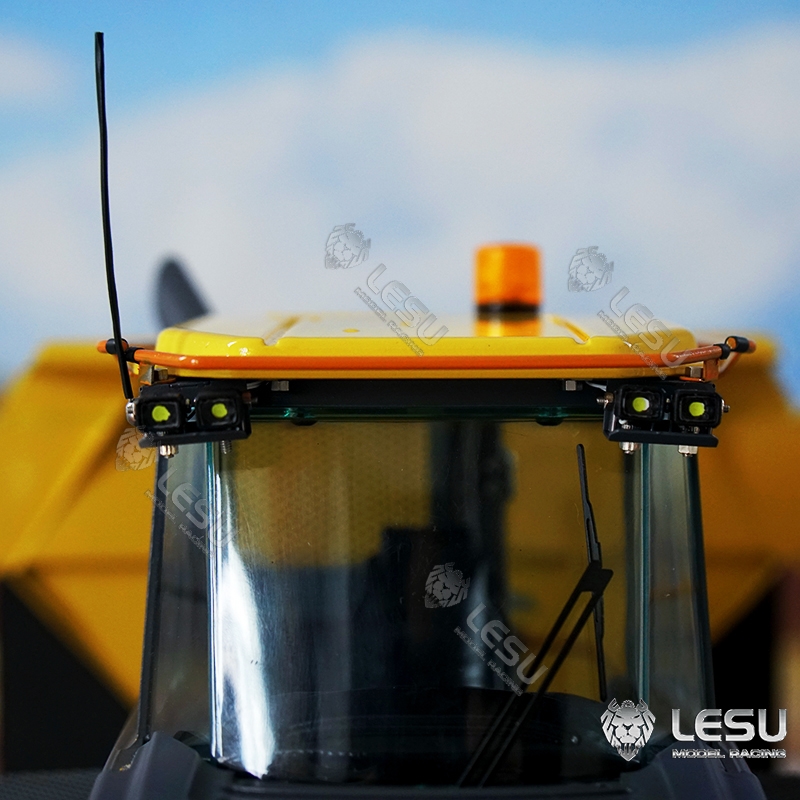

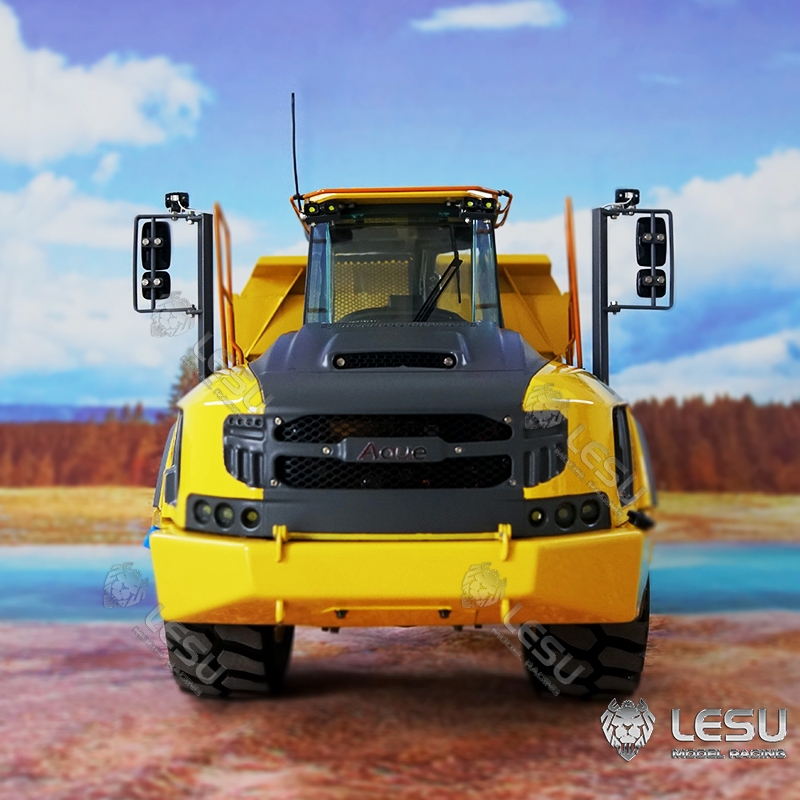

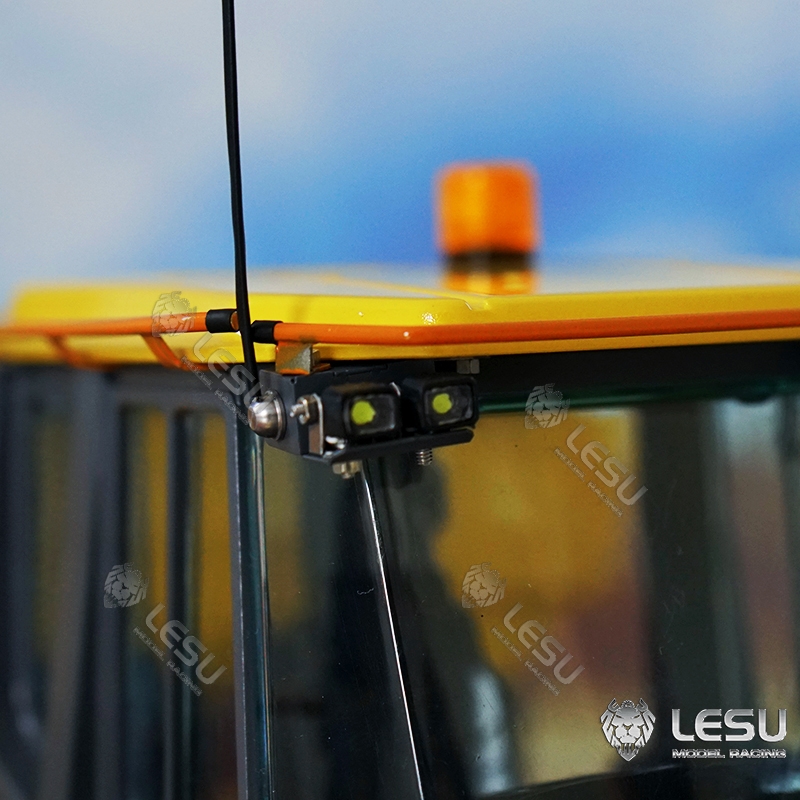

Electronic equipment: Hobbywing 1060 brushed ESC for the drive motor and Hobbywing Skywalker 50a brushless ESC for the hydraulic pump. The model is supplied with light set and comes with 20 LED lights (spotlights, lighting lights, width indicator lights, etc.). Equipped with steering gear and motor. A suitable radio control system and battery are required separastely.

The integrated hydraulic system is easy to disassemble and install. The hydraulic oil pump adopts a new 4 MPa high pressure oil pump. The model is supplied with a 2-channel directional valve, and hydraulic oil cooling radiator. The model uses rigid copper hydraulic tubes where possible.
