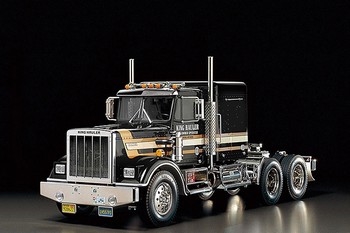

Tamiya RC 1/14 King Hauler Black Edition - 56336

Tamiya RC 1/14 King Hauler Black Edition - 56336

Stock code 56336

Brand  Tamiya

  Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
RRP £445.00 £378.25Each

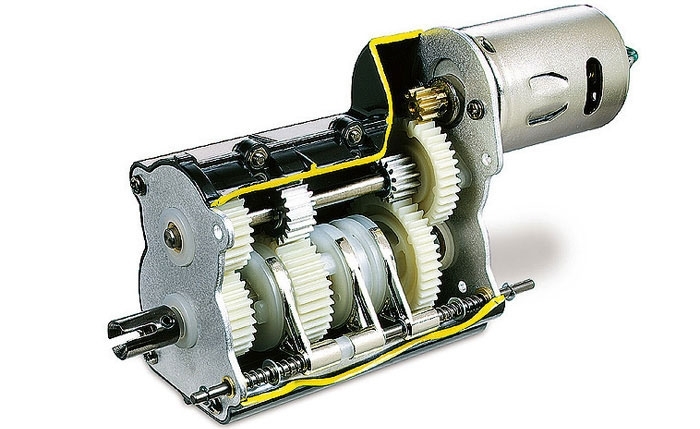

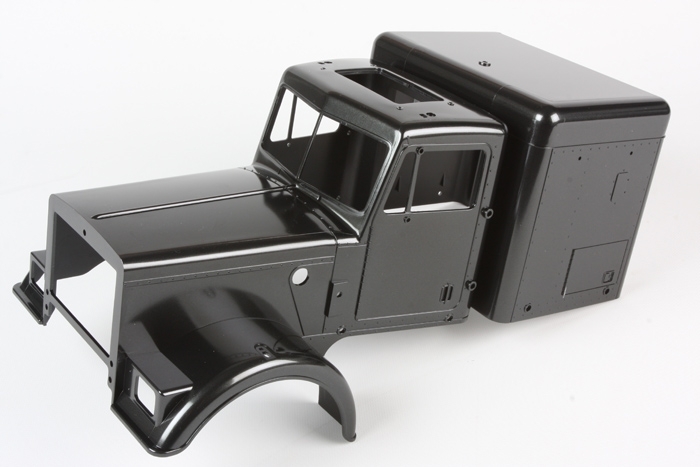

This R/C model assembly kit features a precision-molded tractor truck body with pre-painted metallic black parts offset by chrome-plated parts such as the front grille, air cleaners and more. The tough ladder frame chassis is paired with front and rear metal leaf spring dampers for excellent performance and durability. The front-mounted motor provides power to the rear wheels via propeller shaft, mirroring the system used on actual road-going trucks, and utilizes a 3-speed transmission with manually-controllable gear changes.

Realistic Lights, Sounds, and Vibration with the separately sold MFC Unit:
The separately sold Multi-Function Control Unit (MFC) offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

6 Types of Semi-Trailer Separately Available
6 types of trailer including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.

Specifications
●Length: 692mm, Width: 192mm, Height: 330mm, Weight: Approx. 3.9kg (*with all equipment attached) ●Wheelbase: 433mm+103mm ●Tread: 156mm (Front), 138mm (Rear, Double Tire) ●Chassis: Aluminum & Polycarbonate Resin Ladder Frame ●Suspension: Front/Rear Leaf Springs ●Caster Angle (Front/Rear): 0°/0° ●Camber Angle (Front/Rear): 0°/0° ●Toe Angle (Front/Rear): 0°/0° ●Dampers: Front/Rear Aluminum Friction Dampers ●Drivetrain: Rear 2-Axle Drive ●Transmission: 3-Gear Transmission (gear shifting operated from transmitter) ●Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 ●Diff Gear: 3-Bevel Diff. ●Motor: Type 540 ●Tire Width: 22mm (Front/Rear) ●Tire Diameter: 83mm (Front/Rear) ●Requires: 4-channel transmitter & receiver, MFC-01, 2 servos, 7.2V battery pack & charger (sold separately)

SPECIFICATIONS

  • Adjustable Gear Ratio   3-speed transmission
  • Bearings   metal bushings
  • Body Material   ABS Plastic
  • Chassis Material   aluminum & plastic
  • Construction Type   assembly kit
  • Differential Type   gear
  • Drive Type   3-speed
  • Led Light Buckets   yes
  • Led Lights   no
  • Motor   540-brushed type
  • Requires A   4-channel radio gear
  • Scale   1/14
  • Shock Damper   friction damper
  • Special Feature 1   Body and P parts are replaced with pre-painted Metallic Black parts.
  • Special Feature 2   Length: 600mm, Width: 180mm, Height: 255mm.
  • Special Feature 3   Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.
  • Suspension   leaf spring
  • Terrain Use   on-road



Related Products

EX3G 3ch 24ghz FHSS Steerwheel Radio System
£29.99Each

Out of stock


TS2+2 24GHz 2-Channel Stick Transmitter with 2 Aux Channels with 6-channel Rx
£54.99Each

Supplier stock

Usually dispatches in 1-2 working days.


Voltz 1800 MaH NiMH Stick Pack With Tamiya Connector VZ0010
£9.99Each

In stock



NiMH 72V 2600mAh SC Stick Tamiya
£15.99Each

Supplier stock

Usually dispatches in 1-2 working days.


VOLTZ 3000 MAH NIMH STICK PACK WITH TAMIYA CONNECTOR VZ0015
£17.99Each

In stock



VOLTZ 5300 MAH NIMH STICK PACK WITH TAMIYA CONNECTOR VZ0025
£31.99Each

In stock



Fusion NX84 Sprint AC
£9.99Each

Out of stock


Standard 4kg Servo with Plastic Gears 200mm Lead
£7.99Each

Out of stock

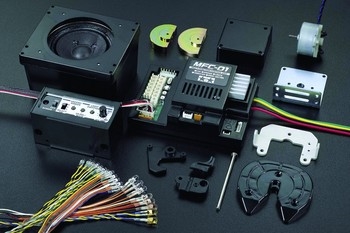

Tamiya Multi-Function Control Unit MFC-01 - American Style
£359.99Each

In stock



Standard 15kg Servo with Metal Gears 200mm Lead
£14.99Each

Out of stock

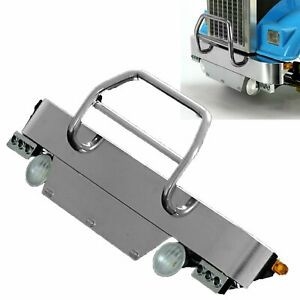

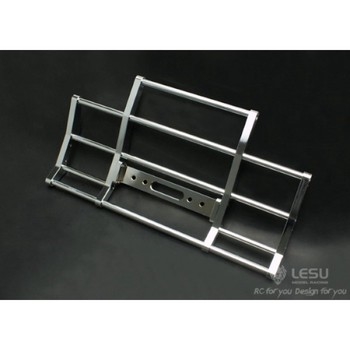

Lesu 114 Front Bull Bar for King Hauler  Globe Liner
£70.00Each

In stock

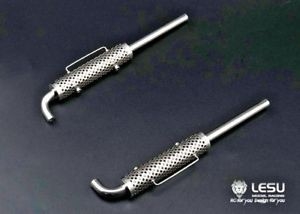

Lesu 114 King Hauler Exhaust Stacks
£55.00Each

In stock

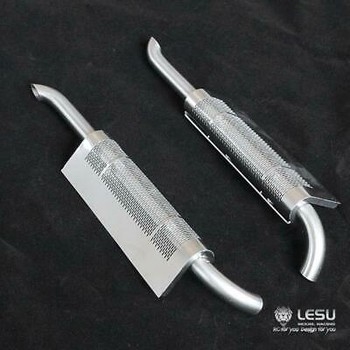

Lesu 114 King Hauler Exhausts
£79.99Each

In stock

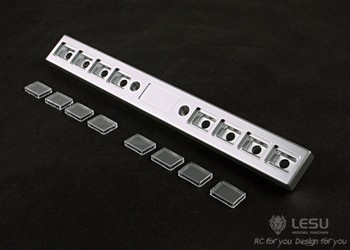

Lesu 114 King Hauler Rear Bumper and Lenses
£52.99Each

Out of stock

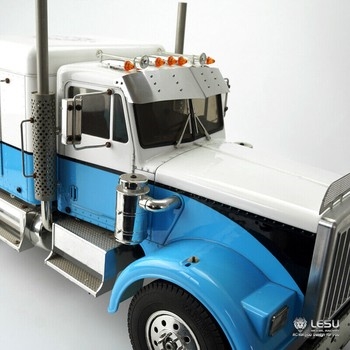

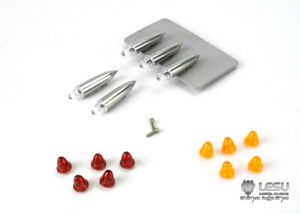

Lesu 114 King Hauler Roof Lights - Type B
£40.00Each

In stock

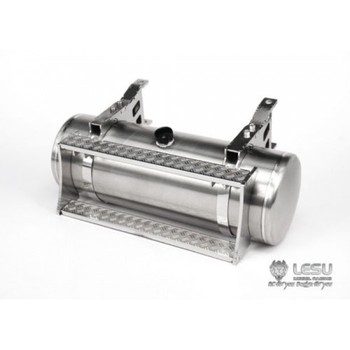

Lesu 114 King Hauler Stainless Steel Fuel Tank With Step
£79.99Each

In stock

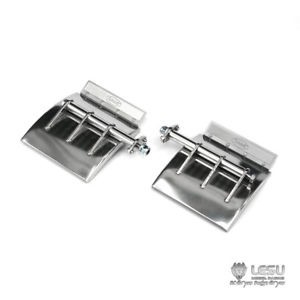

Lesu 114 King Hauler Wheel Guards
£37.00Each

In stock

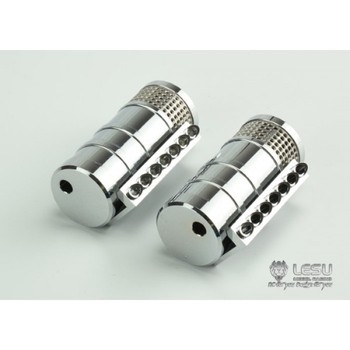

Lesu 114 KingGrand Hauler Air Cleaners
£79.99Each

Out of stock

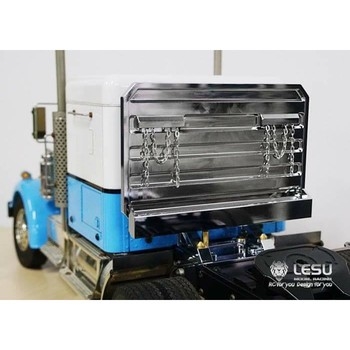

Lesu 114 KingGrand Hauler Headache Rack
£119.99Each

Out of stock

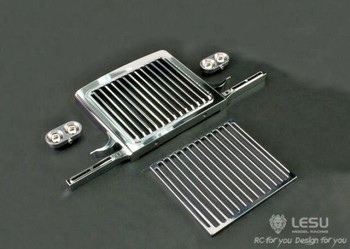

Lesu 114 KingGrand Hauler Metal Front Grill amp Lights
£109.99Each

In stock

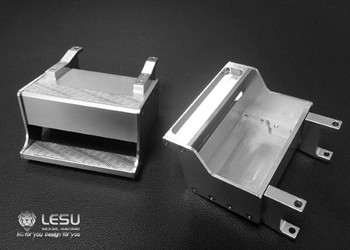

Lesu 114 KingGrand Hauler Tool Boxes
£97.00Each

In stock

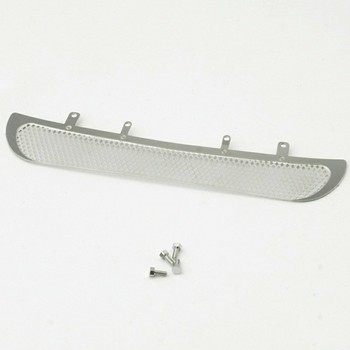

Lesu 114 KingGrand Hauler Windscreen Guard - Type 1 Mesh
£14.99Each

In stock



Lesu 114 KingGrand Hauler Windscreen Guard - Type 2 Solid
£14.99Each

In stock

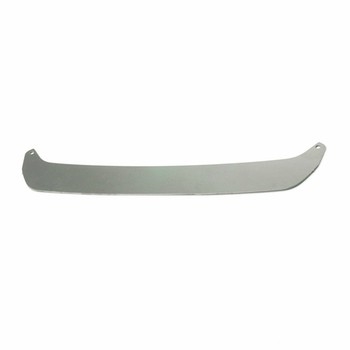

Lesu 114 KingGrand Hauler Windscreen Visor
£19.99Each

In stock

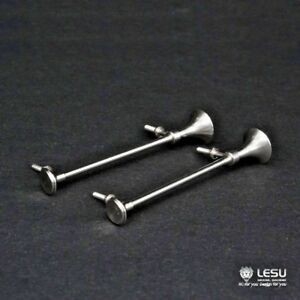

Lesu 114 Metal Air Horns For King Hauler
