Tamiya 58622 RC 1/24 Heavy Dump Truck - GF01
Stock code 58622Brand Tamiya
Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
RRP
£
160.00
£
136.00
Each
Currently unavailable - please contact us for an delivery date or an alternative.

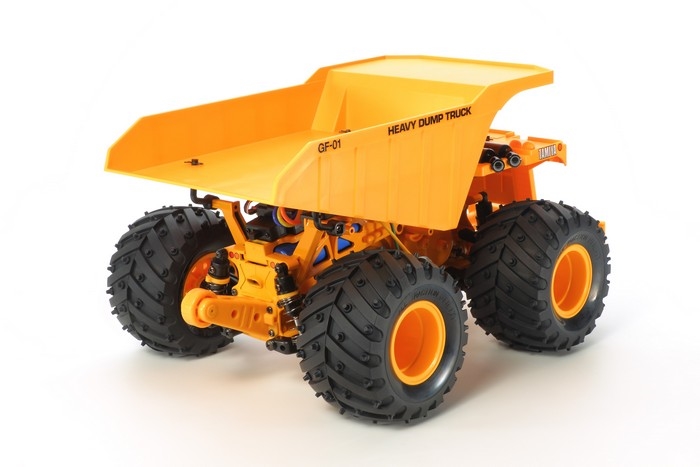

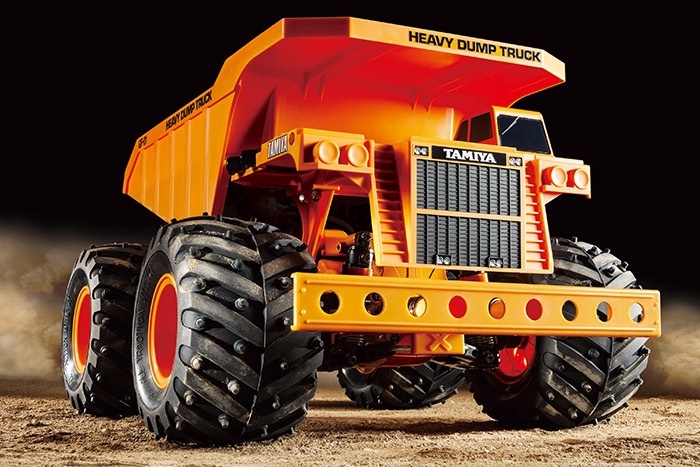

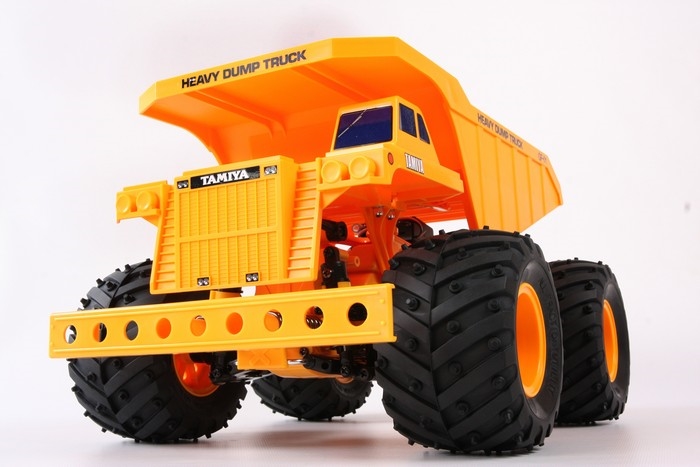

This R/C assembly kit depicts a dump truck modeled upon those which do the heavy work in locations like quarries and large-scale construction sites. The model is based on the popular gear-driven GF-01 chassis.
The GF-01 chassis plays off the successful and fun line-up of RC kits such as the Wild Willy 2, Volkswagen Type 2 and the Farm King Wheelie. Whereas those kits featured a 2WD and easy to wheelie platform, the new GF-01 is a 4WD incarnation with the motor directly placed in the center in order to drive the gears in the front and rear gearboxes.
| Type | Detail |
| Scale | 1/24 |
| Construction type | Assembly kit |
| Terrain use | Multi-Purpose |
| Drive-train | 4WD |
| Drive type | Gearbox |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Fully independent double wishbone |
| Steering mechanism | Bell-crank |
| Shock damper | Friction damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Lug/pin-spike |
| Body material | ABS Plastic |
| Chassis material | Plastic |
| Electronic Speed Control (ESC) | Included |
| ESC model | TBLE-02S |
| LED Light buckets | No |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Plastic bushing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Fixed |
| Adjustable gear ratio | Fixed |
| Adjustable wheelbase | Fixed |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | Length: 350mm, Width: 270mm, Height: 210mm |
| Special feature 2 | The realistic injection-molded resin body features separate cab and rear bed parts. |
| Special feature 3 | Alternate rear bed between flat and raised positions by changing the position of the 2 stays and snap pins in the body mounts. Note: It is not advised to put objects in the rear bed, or drive the model with it elevated. |
| Special feature 4 | Chassis and deep rim wheel parts are molded in yellow for an authentic appearance. |

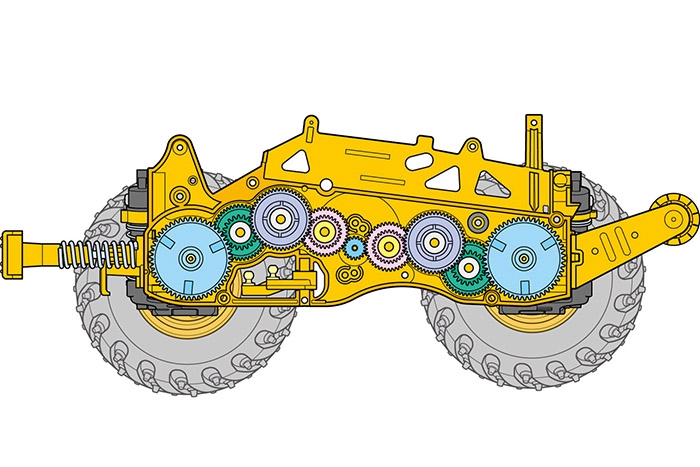

| Special feature 5 | The 4WD GF-01 chassis provides an excellent feeling of big scale, and uses front and rear differentials in sealed gearboxes integrated in the frame. |
| Special feature 6 | 4-wheel double wishbone suspension uses friction dampers. |
| Special feature 7 | The 'square' setup chassis uses similar tread (194mm) and wheelbase (174mm) lengths. |
| Special feature 8 | Torque-tuned motor is included. |
| Special feature 9 | Comes with 115mm-diameter tires. |
| Requires A | 2-channel radio gear |
| Requires B | 7.2 battery & charger |
