Tamiya RC Mercedes Benz Unimog 406 - 58692

Tamiya RC Mercedes Benz Unimog 406 - 58692

Stock code 58692

Brand  Tamiya

  Out of stock
Currently unavailable - please contact us for an delivery date or an alternative.
RRP £299.99 £254.99Each

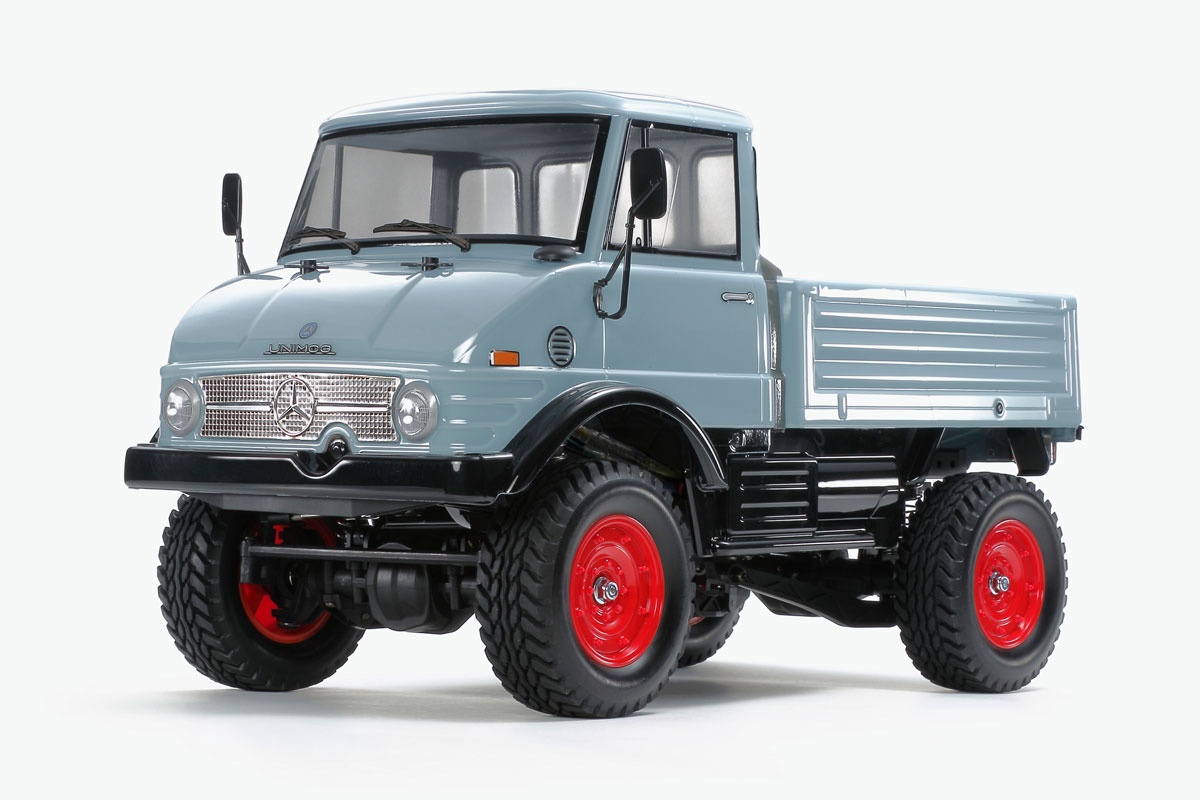

The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off-road performance and its name is an acronym which stands for the German description "Universal-Motor-Gerät." The 406, which also has the ability to equip any of approximately 3,000 attachments for every imaginable task, now is depicted on the proven Tamiya CC-02 chassis.

CC-02 Chassis - Off Road, Evolved

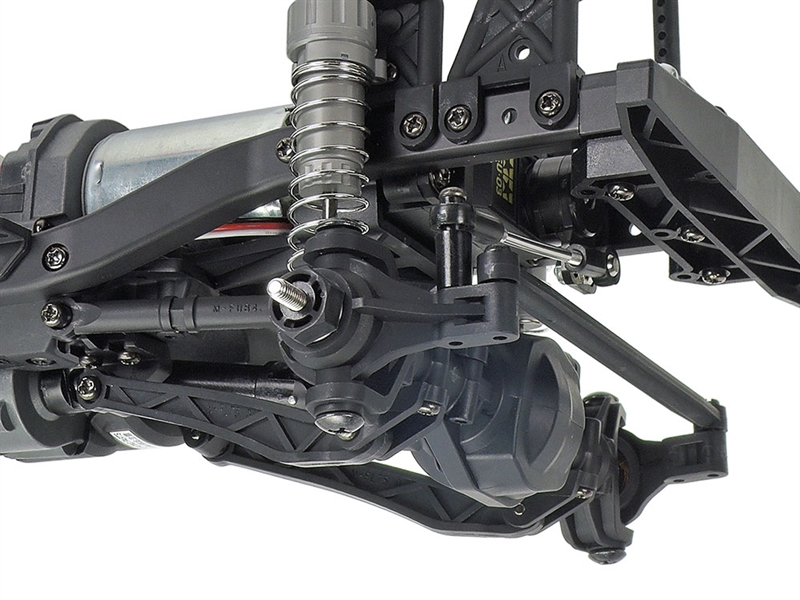

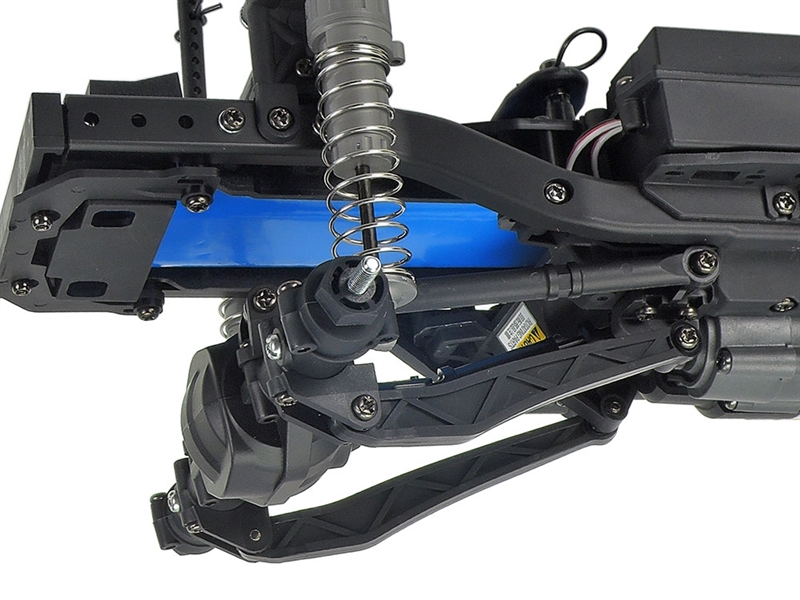

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.

• 1/10 R/C model assembly kit. Length: 384mm, width: 196mm, height: 224mm. Wheelbase: 242mm.

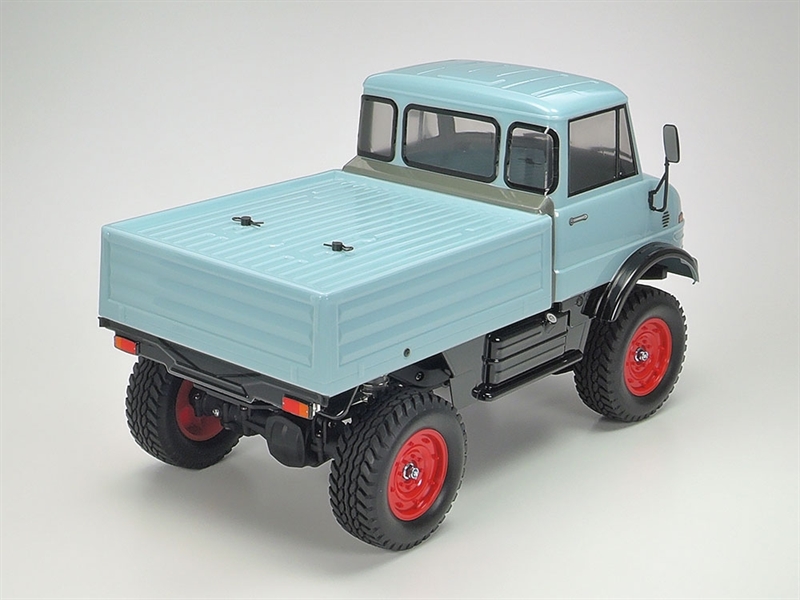

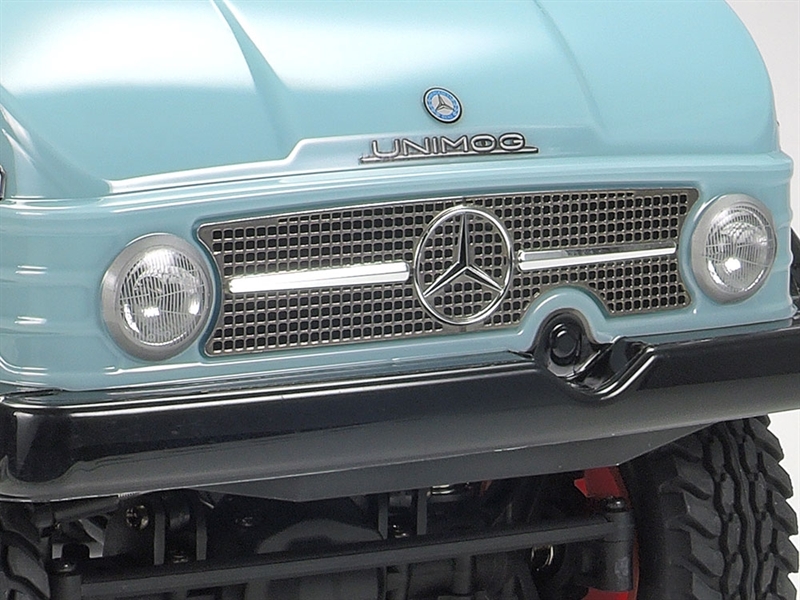

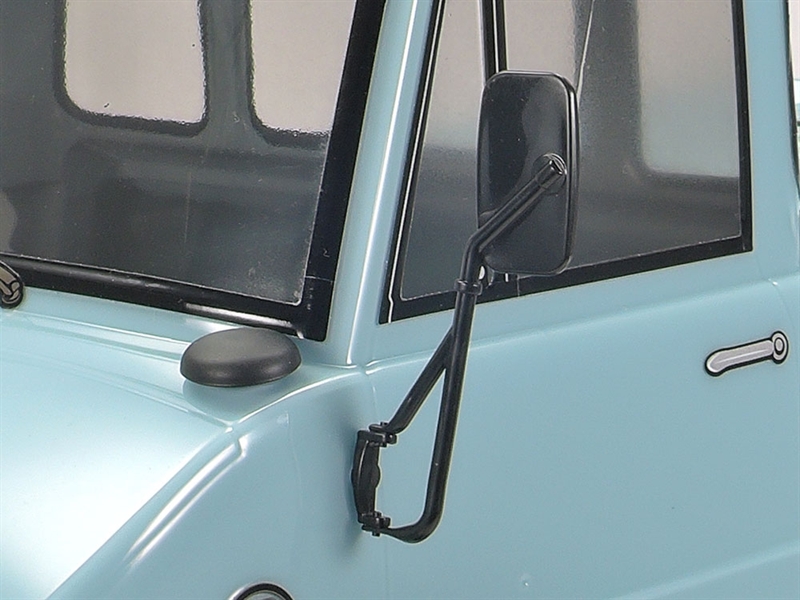

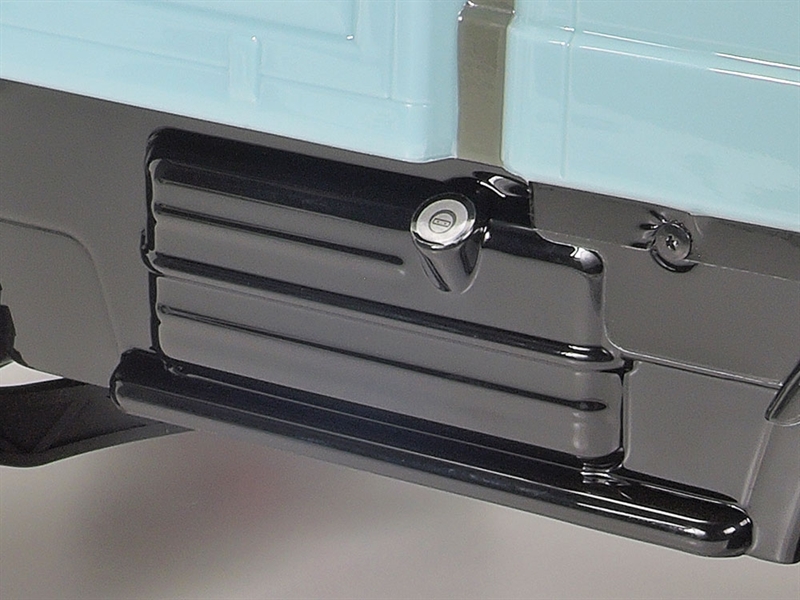

• Polycarbonate body with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem.
• Includes block pattern tires, and red ABS wheels with a depiction of bead lock designs.
• Propeller shafts (short: 76mm) included.

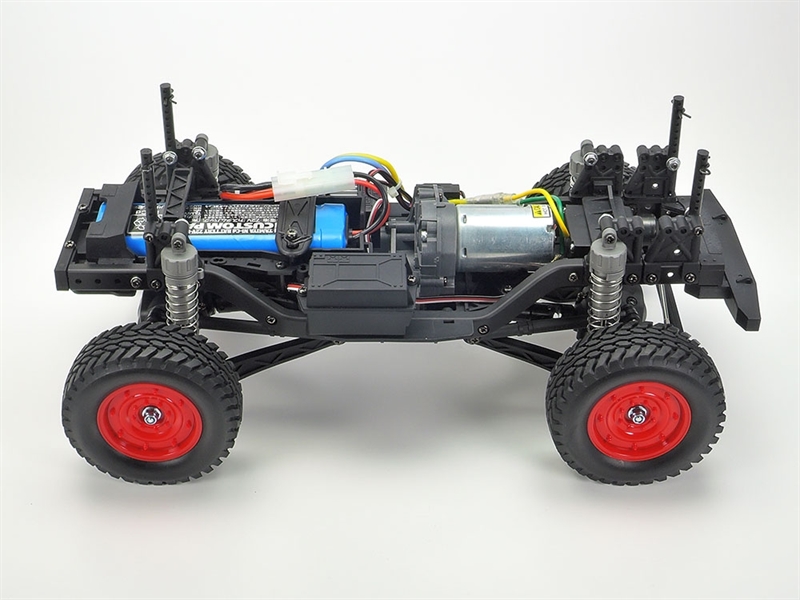

• The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability.
• A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear.

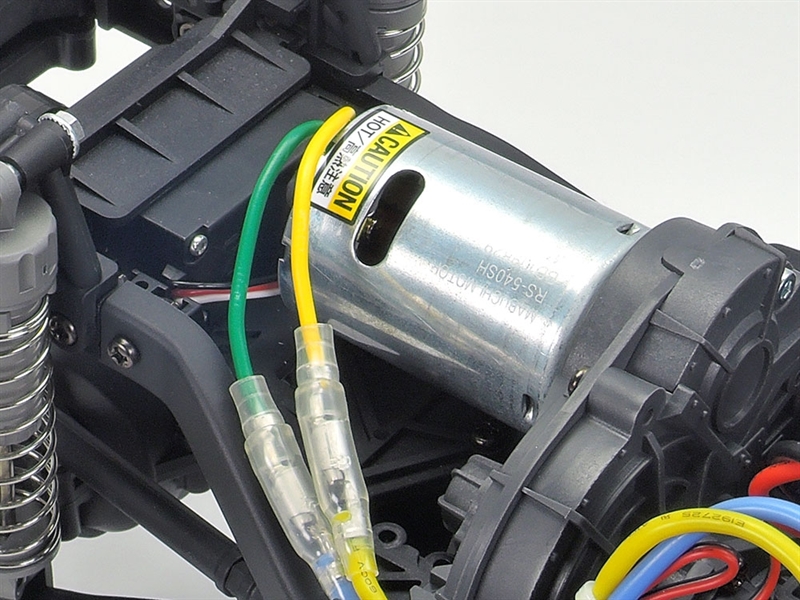

• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS polycarbonate paint.

SPECIFICATIONS

  • Adjustable Gear Ratio   Yes
  • Bearings   Plastic bushings & Metal bearings
  • Body Material   Polycarbonate
  • Body Stickers   Included
  • Chassis Material   FRP Fiberglass Reinforced Plastic
  • Chassis Type   CC02
  • Construction Type   Assembly Kit
  • Differential Type   Gear
  • Drive Type   4WD
  • Electronic Speed Control (esc)   Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
  • Motor   540-brushed type
  • Requires A   2-channel radio, steering servo, ESC, 7.2-7.4 volt battery & battery charger, and Tamiya PS (polycarbonate spray paint)
  • Scale   1/10
  • Shock Damper   CVA Oil Filled
  • Suspension   4-Link Rigid Suspension (Front & Rear)
  • Terrain Use   Multi-Purpose
