Tamiya MF-01X Mercedes Benz G320 Cabriolet 1/10th
Stock code 58629Brand Tamiya
Currently unavailable - please contact us for an delivery date or an alternative.

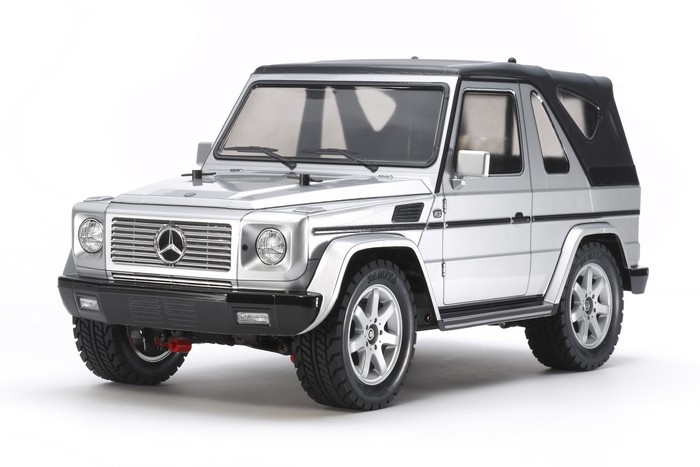

The Mercedes Benz G320 Cabrio was a G Class series vehicle that was sold between 1997 and 2001. While many G Series cars were produced, this version featured a soft convertible top and was based on a short wheelbase version of the chassis. The Tamiya radio control replica is featured on the 4WD MF-01X chassis.

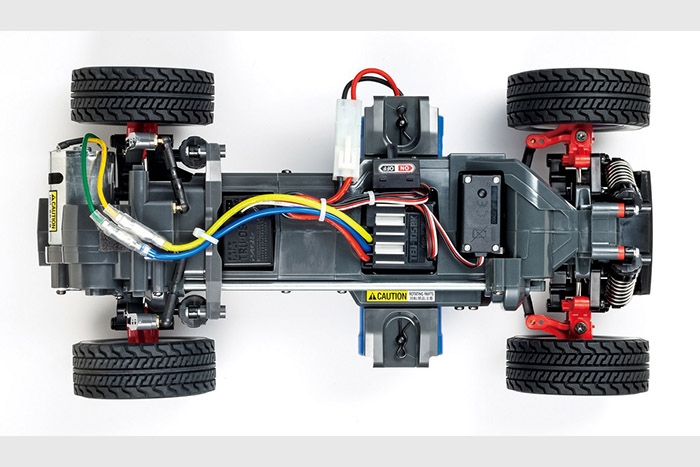

About the MF-01X:
Power is transmitted from the rear mounted motor to the front wheels via a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated into the monocoque for a sturdy and easy-to-assemble structure.
The MF-01X has a three-section make-up; changing the central spacer section enables short
(210mm), middle (225mm), and long (239mm) wheelbases. The Mercedes-Benz G 320 uses the long wheelbase configuration.
- The G 320 Cabrio body is expertly captured in lightweight, durable polycarbonate
- Side mirrors are recreated using separately moulded plastic parts
- The 4WD MF-01X chassis has a rear mounted motor, and uses a prop shaft to transmit power to the front wheels. It features a robust, easy to maintain monocoque frame. It is at home on road and flat dirt surfaces
- This model uses the L wheelbase (239mm). The chassis can be set up in S (210mm) and M (225mm) wheelbases using separately-sold propeller shafts
- A range of option parts are available to hop up the MF-01X chassis, including lightweight, rigid aluminium propeller shafts
- Includes a Tamiya TBLE-02S ESC and Torque Tuned motor. ESC features brushless motor mode for easy expandability
Scale : 1/10
Construction type : Assembly kit
Terrain use : On-Road
Drive-train : 4WD
Drive type : Gearbox
Drive line : Dog bone
Differential type : Gear
Suspension : Fully independent double wishbone
Steering mechanism : Direct servo
Shock damper : Friction damper
Shock damper material : Plastic
Tire type : Rubber
Tire tread : Radial
Body material : Polycarbonate
Chassis material : Plastic
Electronic Speed Control (ESC) : Included
ESC model : TBLE-02S
LED Light buckets : No
LED lights : No
Motor : 540-brushed type
Bearings : Plastic bushing
Adjustable camber : Fixed
Adjustable toe angles ; Front only
Adjustable ground clearance : Yes
Adjustable gear ratio : Yes
Adjustable wheelbase : Yes
Adjustable track width : Fixed
Adjustable shock angle : Fixed
Length: 385mm, width: 178mm, height: 175mm
